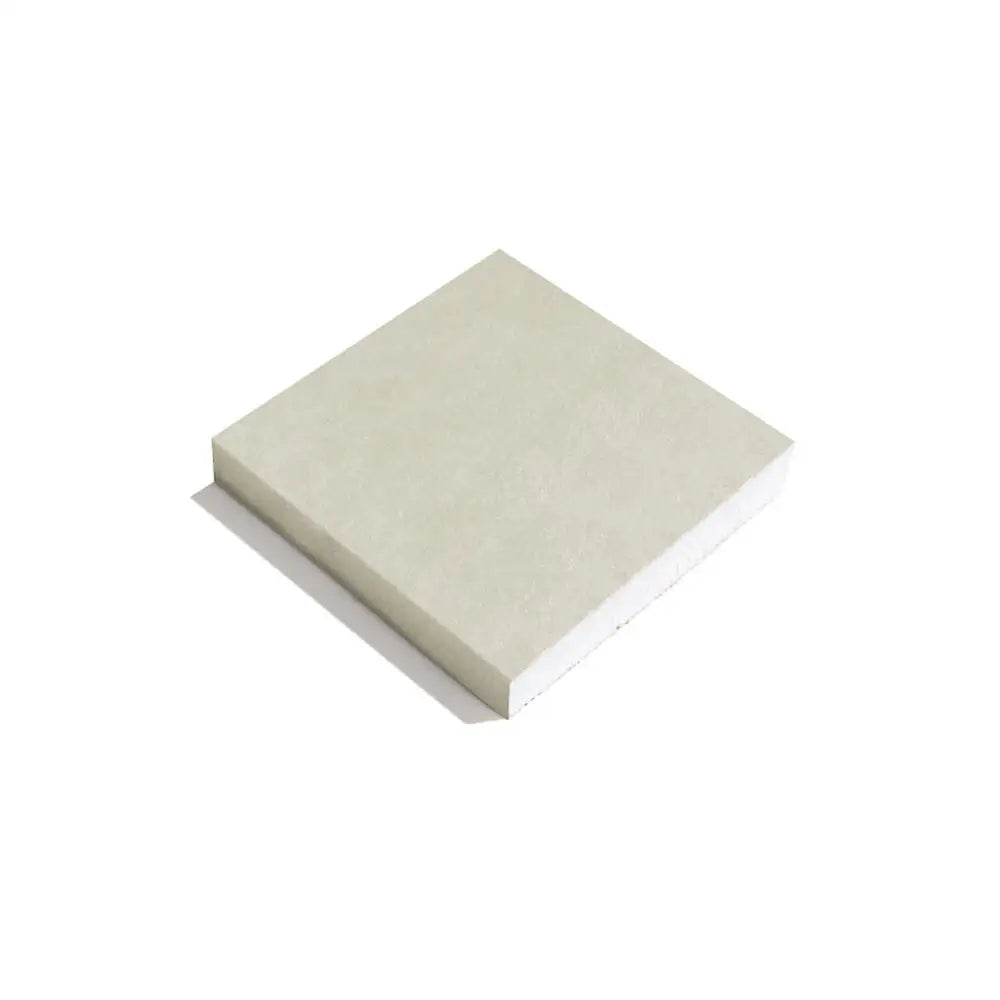

Siniat GTEC Standard Board 12.5mm Thickness Square Edge

The Siniat GTEC Standard Board is a general drylining board and is coloured ivory on the front and grey on the back. It has tapers down the long edges and is available in both Square and Tapered Edge options.

It is a gypsum board used for partitions, linings, and ceilings. It is available with square or tapered edges and in various sizes, making it ideal for tape & jointing or skimming applications.

Applications

• Ideal for partitions, linings, and ceilings

Benefits

• Available in a wide range of sizes to minimize waste
• Reaction to fire: Euroclass A2-s1, d0
• Colour: Ivory

Composition

The board is made of aerated Calcium sulphate di-hydrate encased in liners made from recycled waste paper with bound edges. The core and papers are bonded with starch and the edge glue is PVA.

Compliance

The GTEC Standard Board complies with BS EN 520:2004+A1:2009 Type A.

Physical Properties

• Flexural Strength to BS EN 520:
  • 12.5 mm board
    • Longitudinal breaking load ≥ 550N
    • Transverse breaking load ≥ 210N
• Reaction to fire: Euroclass A2-s1, d0
• Moisture Content: < 2%
• Mass: 8.0 kg/m2 for 12.5 mm board
• Board weight: 23.0 kg for 2400 mm x 1200 mm x 12.5 mm board
• Thermal Resistance, R: 12.5 mm = 0.066 m2K/W
• Thermal Conductivity, λR: 0.19 W/mK
