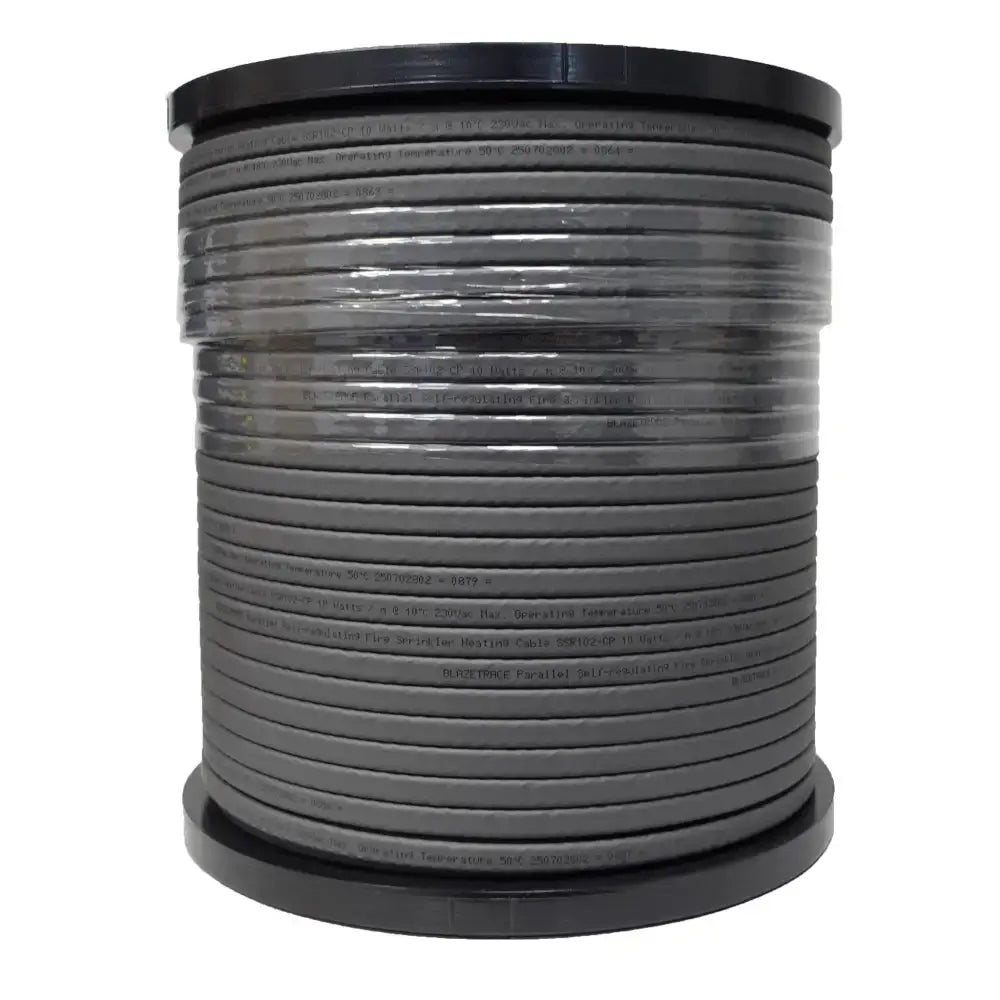

HSR Self‑Regulating Heating Cable

HSR Self‑Regulating Heating Cable

Advanced Trace Heating for Freeze Protection & Temperature Maintenance

The HSR Self‑Regulating Heating Cable delivers reliable, energy‑efficient freeze protection and temperature maintenance for a wide range of commercial and construction applications. Designed for performance, safety, and long service life, it’s the ideal solution for water pipelines, schools, hospitals, commercial buildings, and OEM system integration.

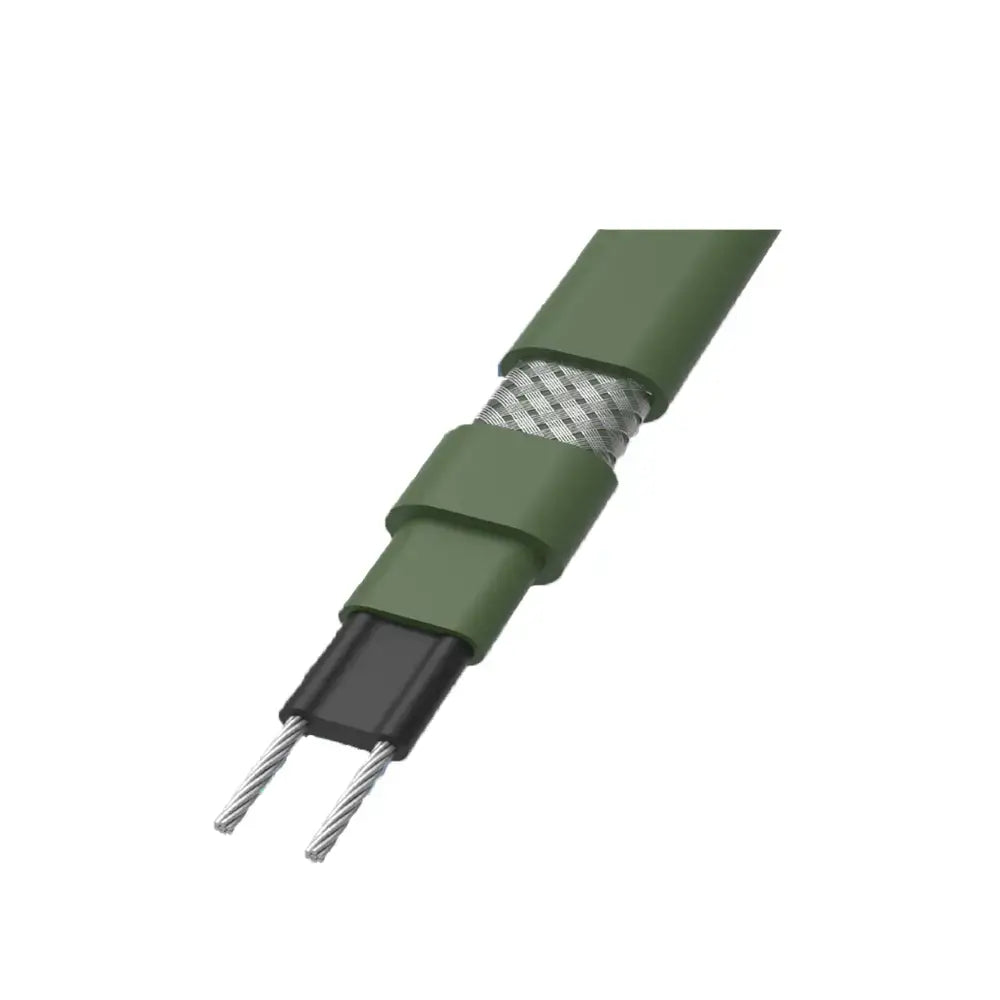

Built with a self-regulating polymer core, the HSR cable automatically adjusts its heat output in response to temperature changes — ensuring consistent performance without the risk of overheating, even when overlapped. This makes installation simpler, safer, and more adaptable to real‑world site conditions.

Key Features

• Self‑regulating technology for automatic heat output adjustment
• No risk of burnout, even when cables overlap
• Cut‑to‑length flexibility for any installation requirement
• Smooth ON/OFF thermal transition, reducing stress on the heating core and improving energy efficiency
• Independent heat output control along the entire cable length

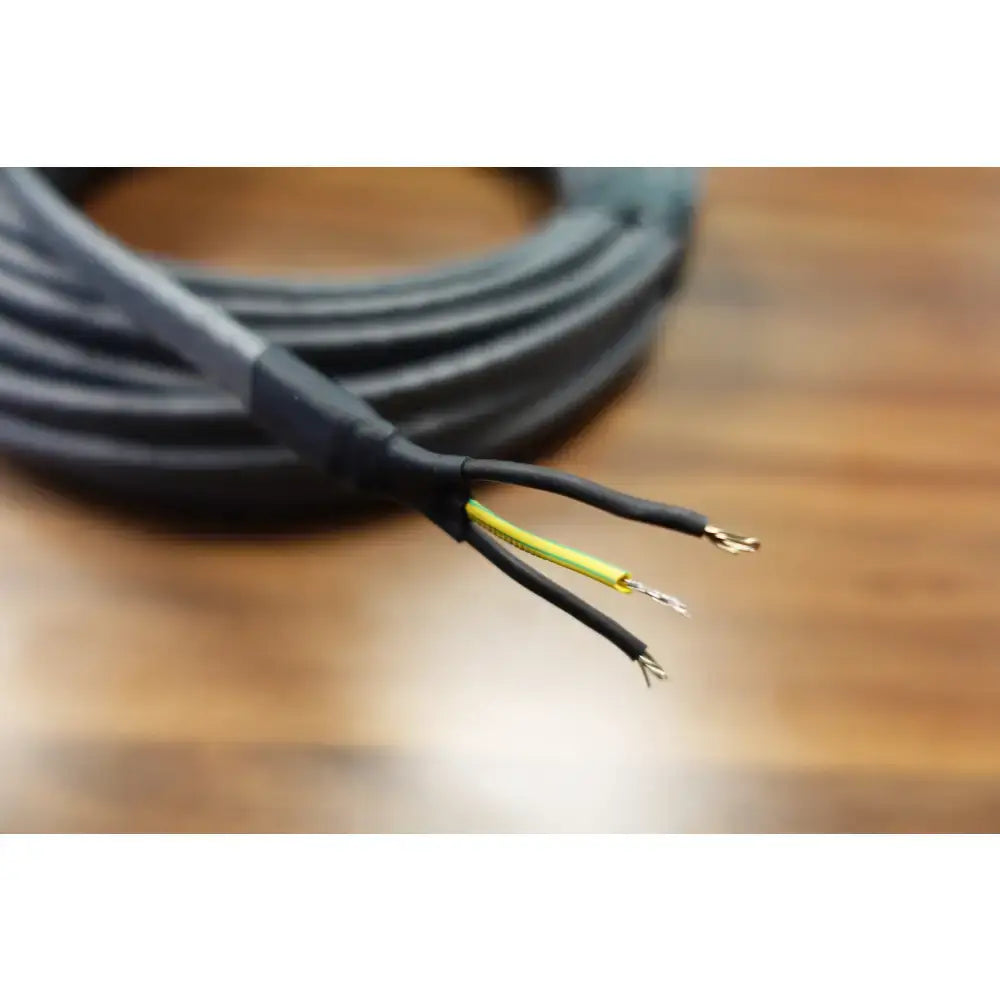

• Easy termination for power connections, end seals, and splicing
• Durable outer jacket options for demanding environments:
• FR Polyolefin (CP) – ideal for aqueous inorganic chemical exposure
• Fluoropolymer (CF) – resistant to organic chemicals and corrosive environments
• OEM configurations available for bespoke applications

Performance & Technical Specifications

• Rated Voltage: 200–277 Vac (100–120 Vac models available)
• Rated Output: 10, 16, 24, or 30 W/m @ 10°C
• Max. Maintain Temperature (Power ON): 65°C (150°F)
• Max. Withstand Temperature (Power OFF): 85°C (185°F)
• Temperature Classification: T6 (85°C)
• Dimensions:
• HSR102–HSR242: 11.4 mm × 5.4 mm
• HSR302: 13.4 mm × 5.4 mm
• Conductors: Parallel AWG 16 (1.5 mm²), ASTM B355 Class 2 Nickel‑Plated Copper
• Outer Jacket Options:

• P: FR Polyolefin
• F: Fluoropolymer (PVDF)

Where This Cable Excels

• Freeze protection for water supply lines
• Temperature maintenance in public buildings (schools, hospitals, commercial venues)
• Industrial and construction environments requiring reliable, self‑regulating heat
• OEM applications needing customised heating solutions

Why Choose the HSR Series?

This cable is engineered for installers who need dependability, flexibility, and long-term performance. Its self-regulating design ensures optimal energy use, while its rugged construction stands up to harsh environments. Whether you’re protecting critical infrastructure or maintaining process temperatures, the HSR series delivers consistent, safe, and efficient heat tracing.

Available on our website:

- HSR102-CP - 10 Watt

- HSR162-CP – 16 Watt

- HSR242-CP – 24 Watt

- HSR302-CP – 30 Watt
