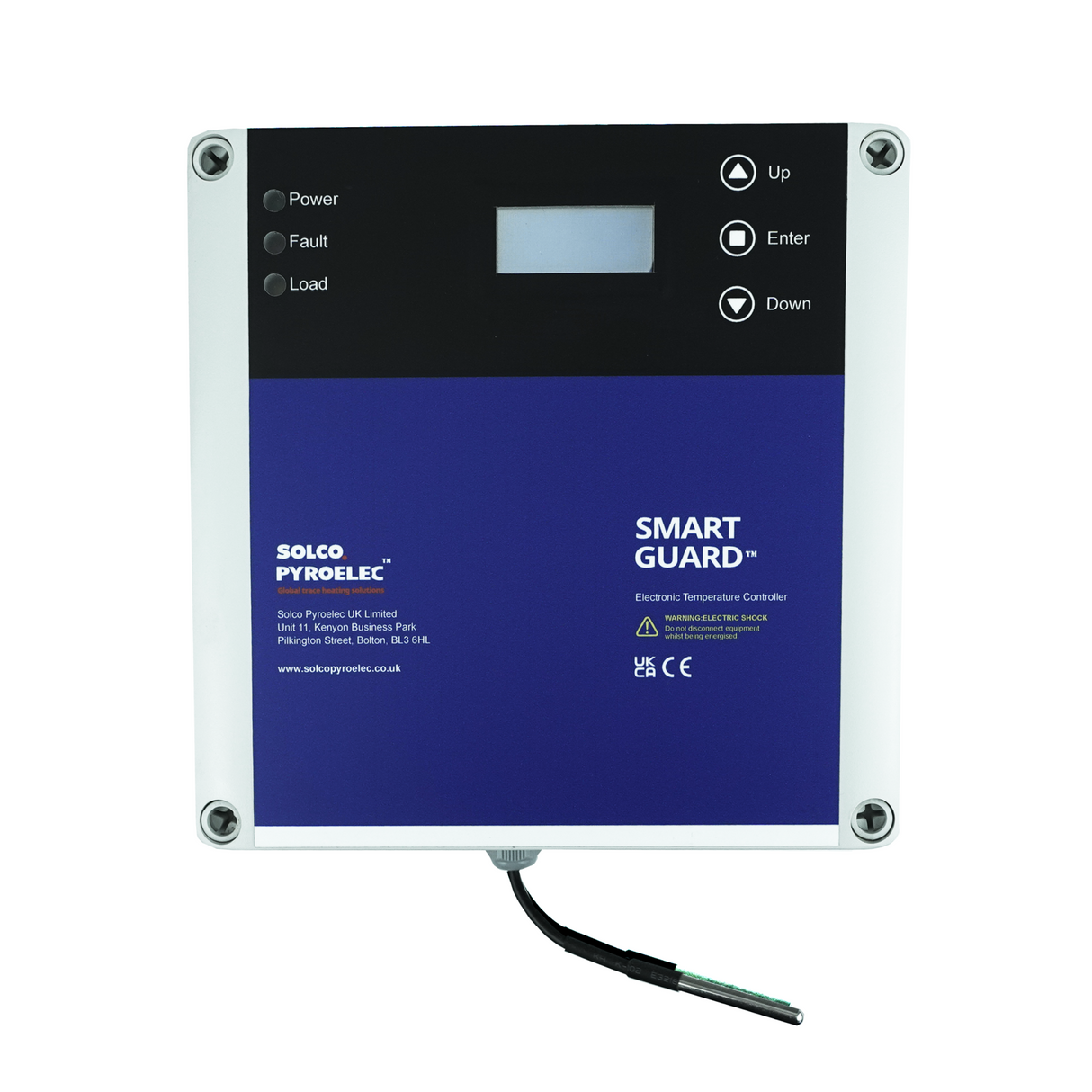

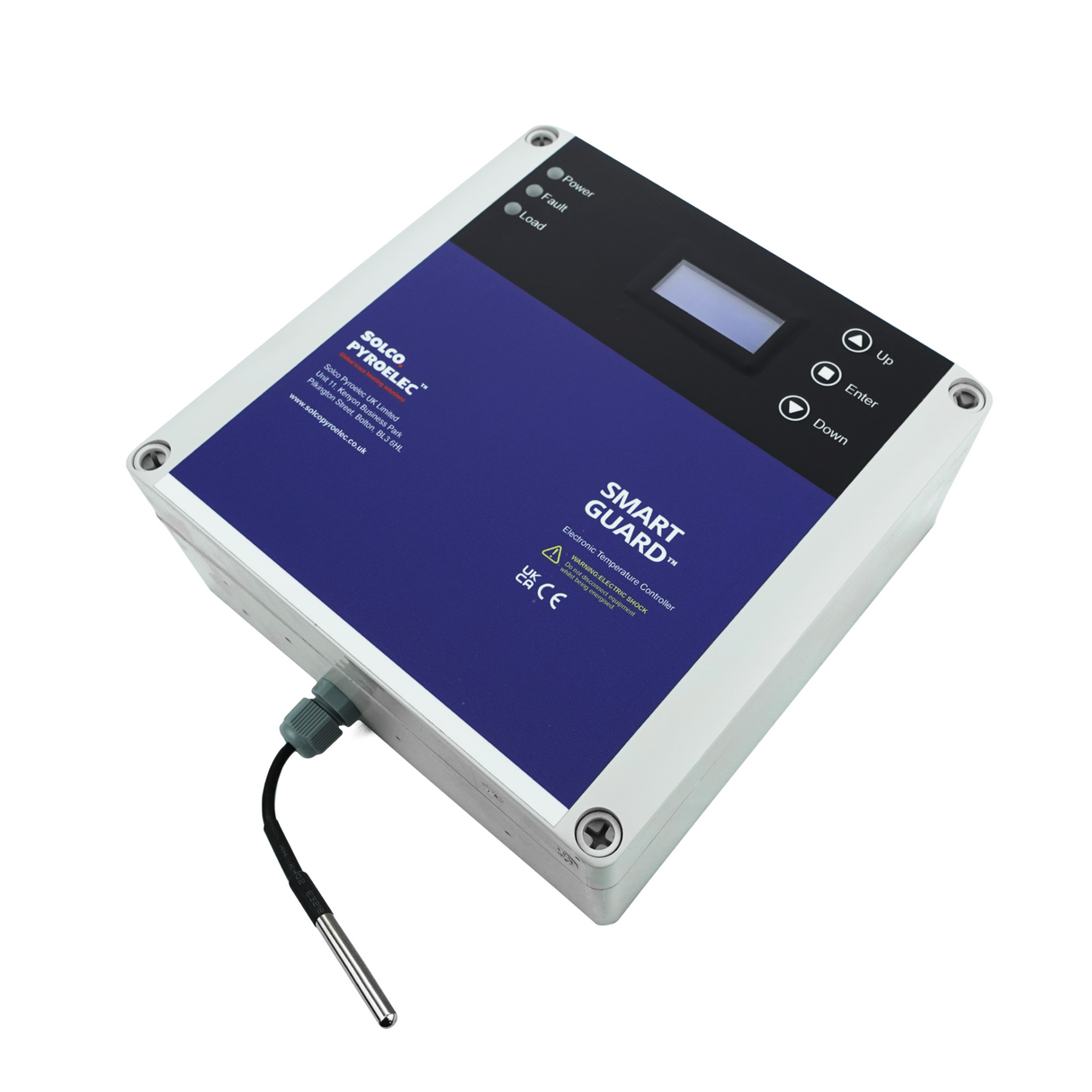

Smart-GUARD Electric Trace Heating Controller

The Smart-GUARD v.01 is an advanced control and monitoring device designed for managing and safeguarding electric trace heating systems. It's capable of actively monitoring two independent heating circuits simultaneously. This product features a soft-start mechanism to mitigate inrush currents, allowing for longer circuit lengths. Additionally, it includes security measures like locked control buttons to prevent unauthorized adjustments. The Smart-GUARD v.01 is equipped with an intuitive user interface, including LED indicators and an LCD screen, and offers a range of programmable parameters for versatile heating applications in non-hazardous areas. It's particularly suitable for commercial settings requiring reliable and efficient trace heating solutions.

The Smart-GUARD v.01 has the following key features and additional specifications:

• Monitoring: Active monitoring of 2 independent heating circuits (duty/standby)
• Soft-Start Feature: Built-in feature to eliminate inrush currents, allowing increased circuit lengths
• Security: Locked UP, DOWN, ENTER buttons to prevent tampering

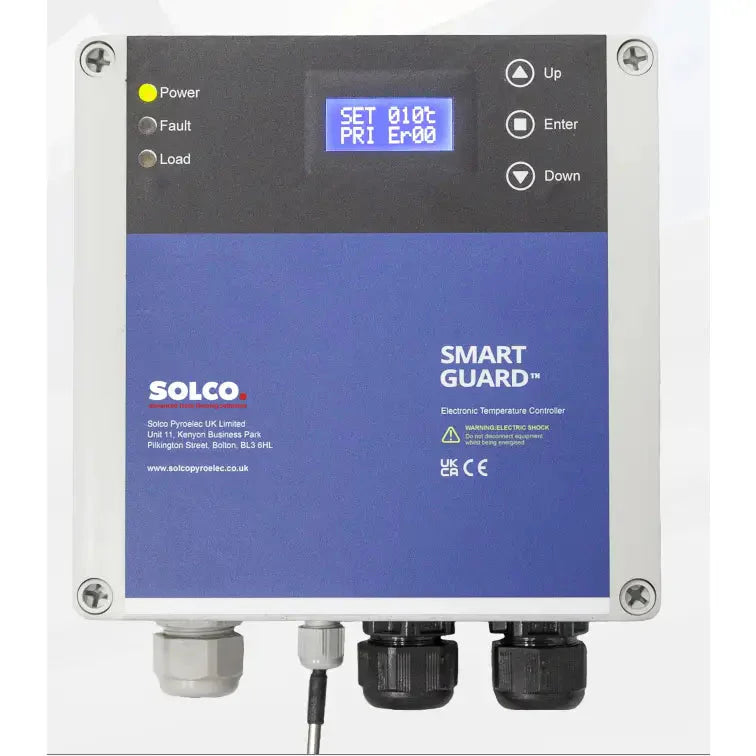

• User Interface: 3 LED indicators for POWER, FAULT & LOAD; main 8x2 digit LCD screen
• Entries: Guide markings for cable gland entry holes
• Plug & Play: Pre-set for freeze protection application; air or line sensing
• Mounting: Compatible with SOLCO PYROELEC pipe mount bracket
• Temperature Setting Range: -15°C to 100°C
• Supply Voltage: 100Vac (min) – 270Vac (max), 50/60 Hz
• Load Current: Maximum 20A
• Enclosure Dimensions: 175mm x 175mm x 75mm, IP66/67 ingress protection
• Temperature Sensor: NTC 10kohm, PVC cable, extendable up to 100 meters
• Control Relay: 20A
• Alarm Relay: 3A SPST
• Programmable Parameters: Temperature setting, hysteresis, heater operation if sensor error
• Diagnosed Alarms: Various alarms including power loss, sensor issues, load relay error
• Non-Hazardous Area Use
• Environmental Operating Range: -20°C to +60°C
• RoHS Compliant: Made in the United Kingdom

These features and specifications highlight the Smart-GUARD v.01's capabilities for advanced trace heating solutions in various commercial applications.
