Rockwool HD Wired Mat

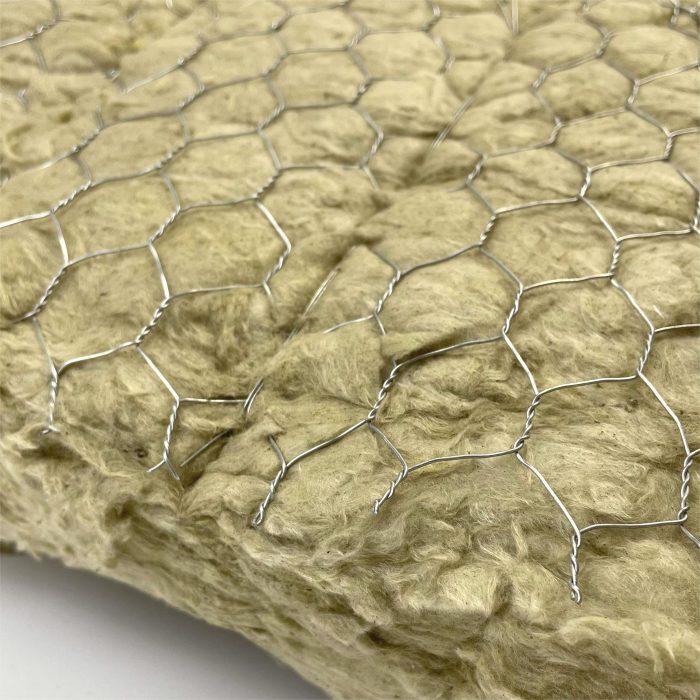

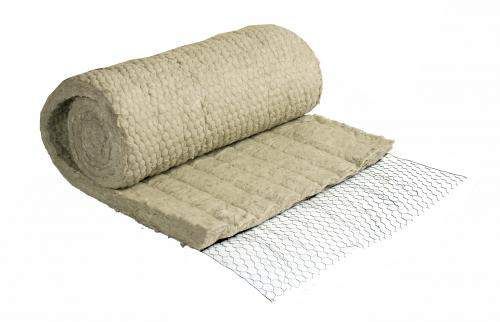

ROCKWOOL HD Wired Mat is a heavy-grade, flexible stone wool insulation mat stitched to galvanised wire mesh, designed for demanding industrial thermal insulation applications.
The ROCKWOOL ProRox WM 970 UK reference grade offers a nominal density of 128kg/m³, a maximum service temperature of 680°C and Euroclass A1 non-combustible classification.
Particularly suitable for high-pressure steam pipework, reactors, furnaces and industrial process equipment where elevated operating temperatures and robust insulation are required.
Available in 50mm, 60mm and 80mm thicknesses. Select your required option using the product variants above.
Where Can ROCKWOOL HD Wired Mat Be Used?
High-Pressure Steam Pipework
High-density thermal insulation for suitable steam distribution systems and industrial process pipework operating at elevated temperatures.

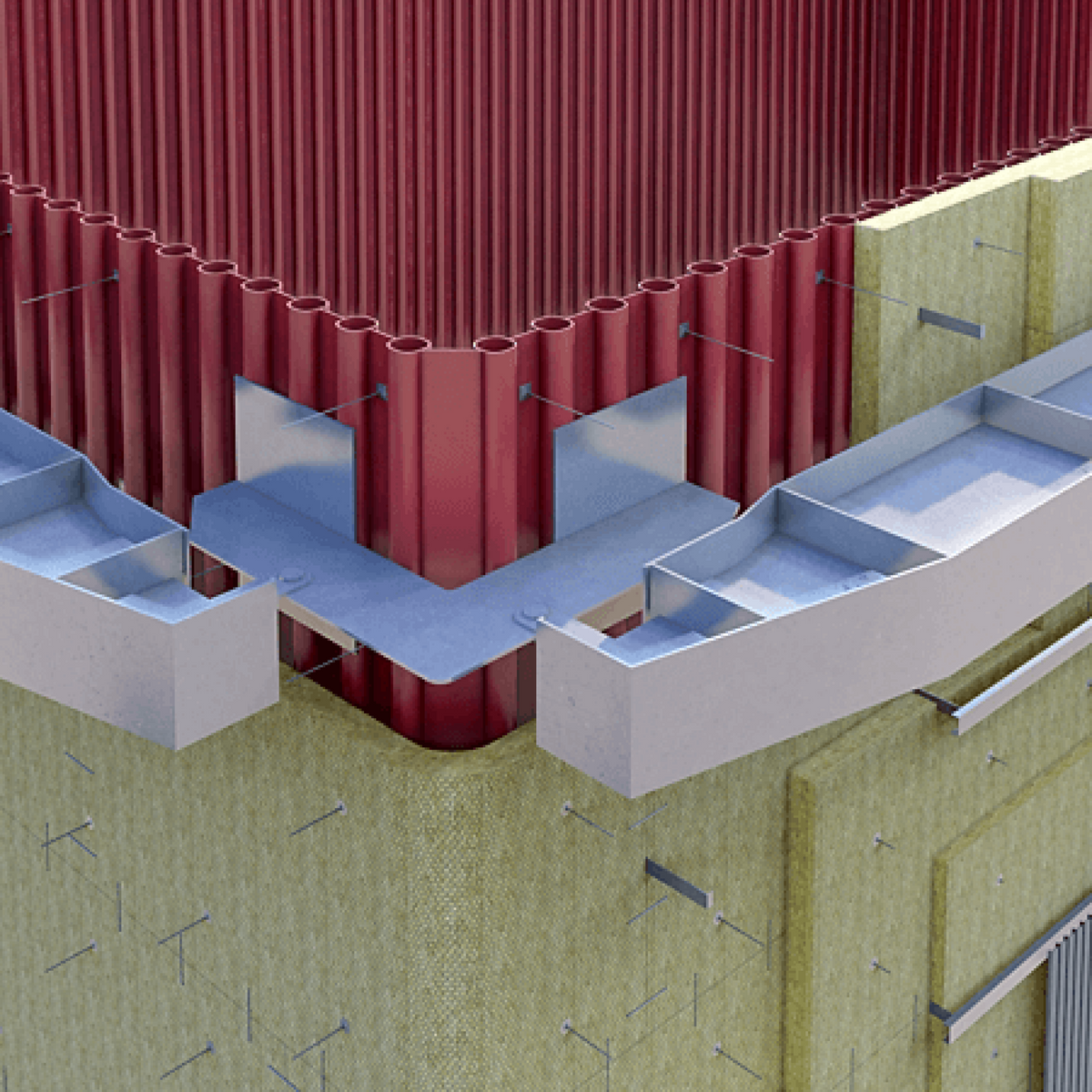

Furnaces & Reactors
Suitable for specified industrial furnaces, reactors and process equipment where high-temperature insulation performance is required.

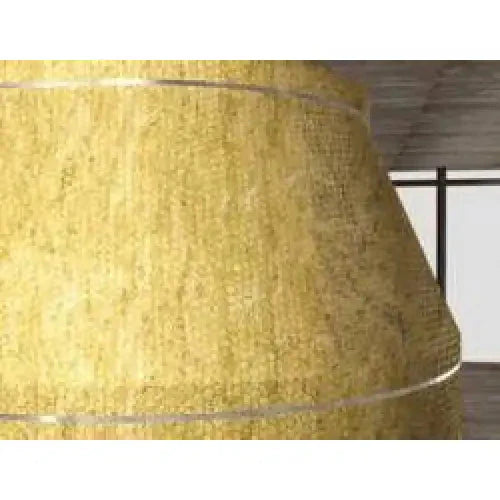

Vessels & Irregular Surfaces
The flexible, wired construction allows the mat to conform to curved vessels and irregular equipment profiles.
Industrial Thermal Protection
High-density stone wool insulation with Euroclass A1 reaction-to-fire performance and temperature-dependent thermal conductivity.
Available HD Wired Mat Thicknesses
Our ROCKWOOL HD Wired Mat range is available in three thicknesses. Roll dimensions and coverage vary by option.
| Thickness | Listed Roll Size | Coverage |
|---|---|---|
| 50mm | 1m x 3.1m | 3.1m² |
| 60mm | Confirm roll dimensions | Confirm coverage |
| 80mm | 1m x 1.9m | 1.9m² |
The 50mm and 80mm roll sizes reflect the Insulation & More listing. Roll dimensions are not established by the manufacturer datasheet. Please confirm the 60mm roll quantity and any split-roll requirements before ordering.
ROCKWOOL ProRox WM 970 UK Product Information
| Manufacturer | ROCKWOOL Technical Insulation |
|---|---|
| Reference Grade | ProRox WM 970 UK |
| Material | Stone wool |
| Construction | Stone wool stitched to galvanised wire mesh |
| Nominal Density | 128kg/m³ |
| Maximum Service Temperature | 680°C |
| Reaction to Fire | Euroclass A1 |
| Water Absorption | ≤ 0.2kg/m² |
| Water-Leachable Chloride Ions | ≤ 10mg/kg |
| Water-Repellent Binder | WR-Tech |
| Product Standard | EN 14303:2009+A1:2013 |
| EN 14303 Designation | MW-EN 14303-T2-ST(+)680-WS1-CL10 |
Technical values are based on the ROCKWOOL ProRox WM 970 UK reference specification. Always check the latest applicable manufacturer documentation and confirm the exact product grade and facing supplied before specifying insulation for temperature-critical or compliance-controlled applications.
Thermal Conductivity at Different Temperatures
The thermal conductivity of industrial stone wool increases with mean insulation temperature. ROCKWOOL publishes the following performance values for ProRox WM 970 UK.
| Mean Temperature | Thermal Conductivity |
|---|---|
| 50°C | 0.040 W/mK |
| 100°C | 0.045 W/mK |
| 150°C | 0.053 W/mK |
| 200°C | 0.061 W/mK |
| 250°C | 0.070 W/mK |
| 300°C | 0.081 W/mK |
| 350°C | 0.093 W/mK |
| 400°C | 0.105 W/mK |
| 500°C | 0.132 W/mK |
| 600°C | 0.167 W/mK |
| 680°C | 0.197 W/mK |
Values relate to mean insulation temperature rather than necessarily the pipe or equipment operating temperature. Use the applicable manufacturer data for engineered insulation calculations.
How Much HD Wired Mat Do You Need?
For straight circular pipework, estimate the approximate developed insulation length using:
L = 3.14 x (OD + 2t)
OD: Pipe outside
diameter (metres)
t: Insulation
thickness (metres)
L: Approximate
developed wrap length (metres)
Multiply the developed wrap length by the total straight pipe run length to estimate the required insulation area. Divide by the coverage of the selected roll and round up.
Example: For 10m² of developed insulation area using 50mm mat: 10 ÷ 3.1 = 3.23, so approximately 4 rolls before installation waste.
This is an approximate purchasing calculation, not a manufacturer insulation design formula. Allow for bends, supports, overlaps, joints, compression and cutting waste. Insulation thickness should be specified separately.

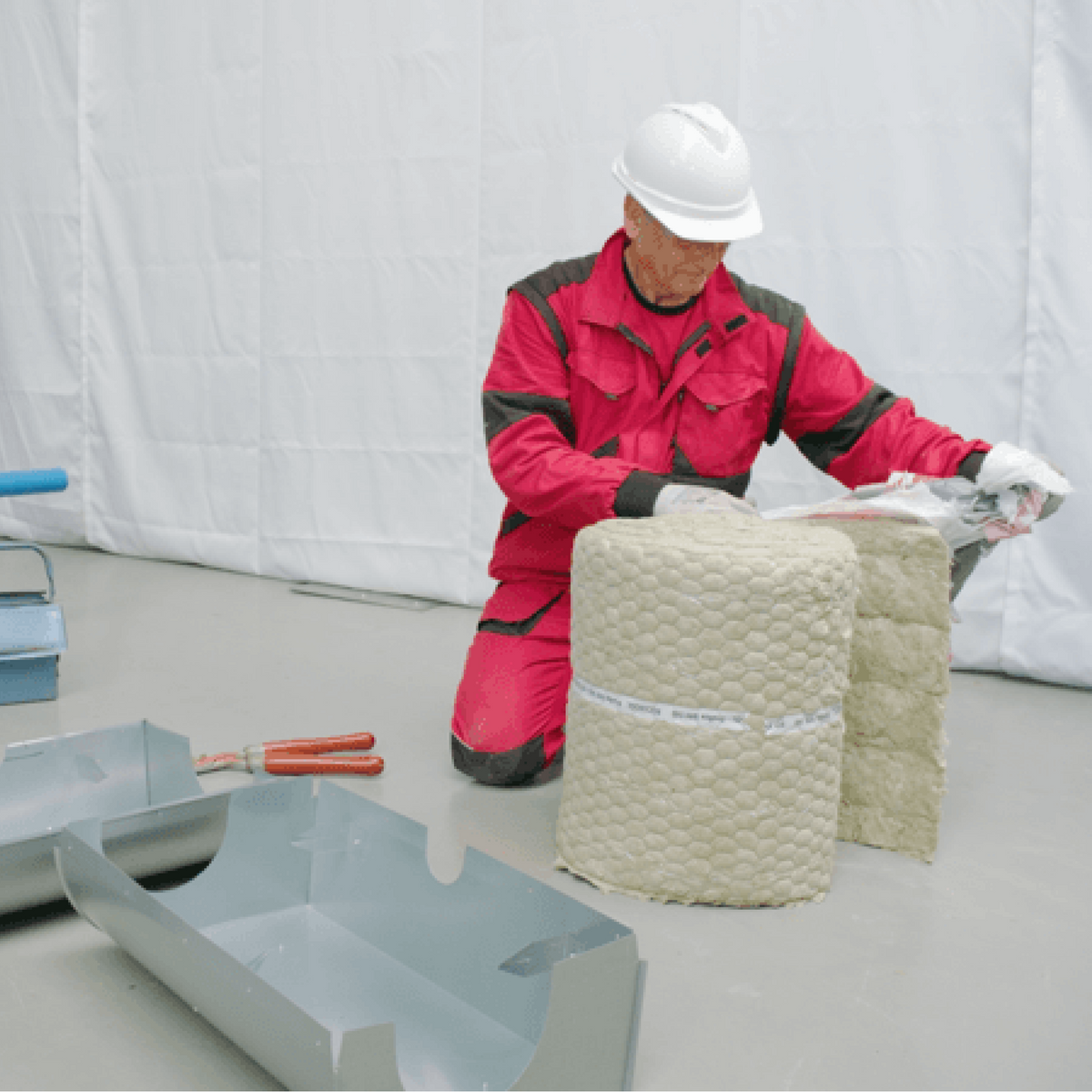

Installing ROCKWOOL HD Wired Mat
Fit Around Equipment
Form the flexible mat around pipework, vessels and equipment profiles while maintaining the specified insulation thickness.
Secure with Suitable Fixings
Use appropriate lacing, binding or mechanical fixing arrangements suitable for the operating temperature and installation requirements.

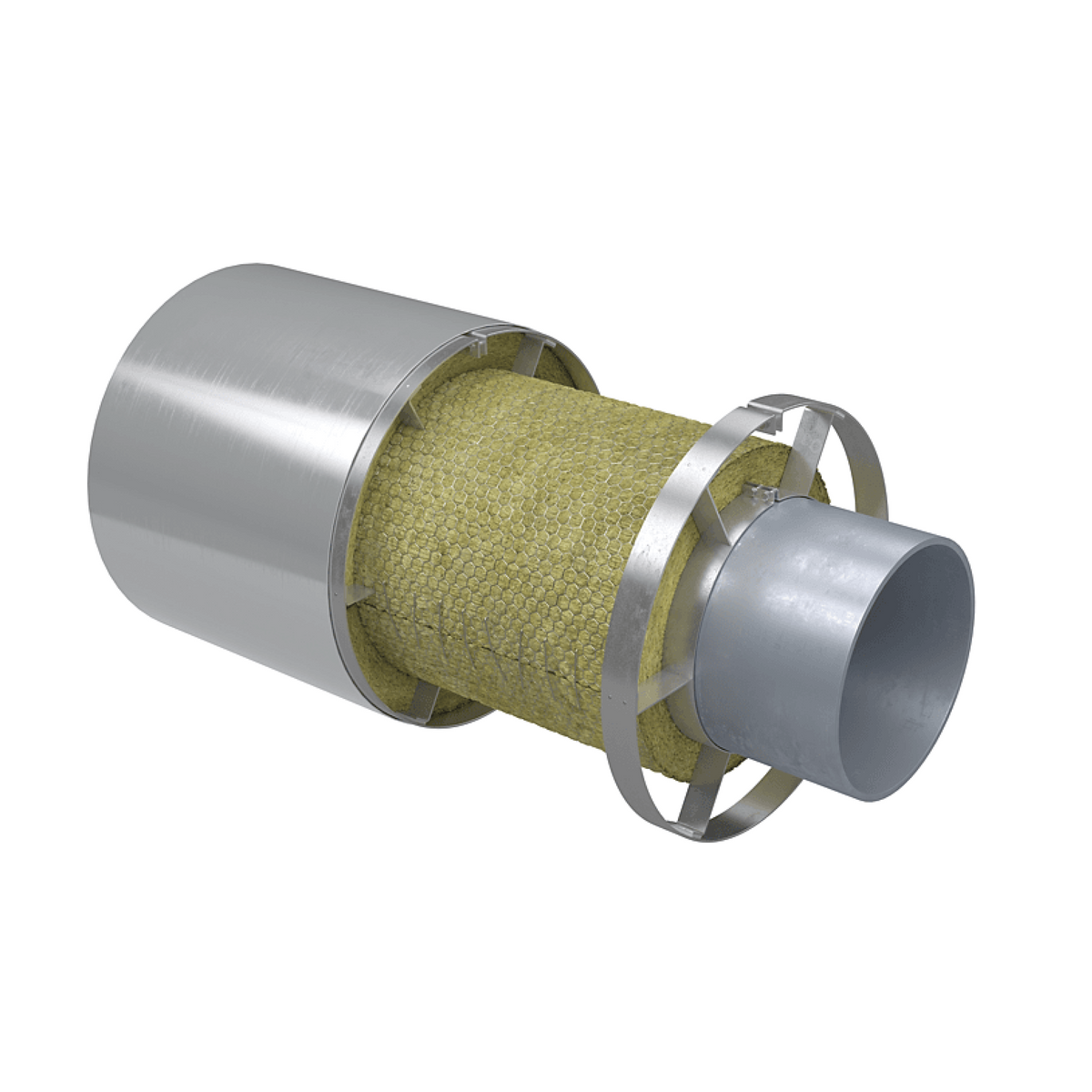

Protect External Installations
Provide suitable protective cladding and moisture management for external pipework or exposed industrial equipment.
Check Material Compatibility
Verify service temperature, insulation thickness, fixing materials and any special facing requirements before use.
ROCKWOOL offers stainless steel mesh and reinforced aluminium foil facing as special options. Where aluminium foil facing is used, the manufacturer limits its outer temperature to 80°C. These special facings are not assumed to be included as standard.
Industrial Insulation & Protection
Official ROCKWOOL Product Information
Access the manufacturer's ProRox WM 970 UK product information, technical documentation and installation guidance.
ROCKWOOL HD Wired Mat FAQs
What is ROCKWOOL HD Wired Mat used for?
Heavy-duty wired stone wool insulation is used for industrial pipework, high-pressure steam systems, reactors, furnaces, vessels and high-temperature equipment where the appropriate product grade is specified.
What thicknesses are available?
Insulation & More offers 50mm, 60mm and 80mm thickness options. Roll dimensions and coverage vary by thickness.
What is the difference between Standard and HD Wired Mat?
As manufacturer reference grades, ProRox WM 960 has a nominal density of 100kg/m³, while WM 970 UK has a nominal density of 128kg/m³. WM 970 UK is intended for particularly demanding high-temperature applications. Select according to the required project specification.
What temperature can ROCKWOOL HD Wired Mat withstand?
ROCKWOOL ProRox WM 970 UK has a maximum service temperature of 680°C. The applicable service temperature depends on the exact product grade and insulation system.
Is ROCKWOOL HD Wired Mat non-combustible?
The ProRox WM 970 UK reference grade is classified Euroclass A1 for reaction to fire. This classification does not establish the fire resistance of an entire assembly.
Can HD Wired Mat be used outdoors?
It can be incorporated into suitable external industrial insulation systems where appropriate protective cladding, fixings and moisture management are provided.
Does HD Wired Mat have galvanised wire reinforcement?
ProRox WM 970 UK is supplied with galvanised mesh and wire as standard. Stainless steel mesh and reinforced aluminium foil facings are manufacturer options available on request.

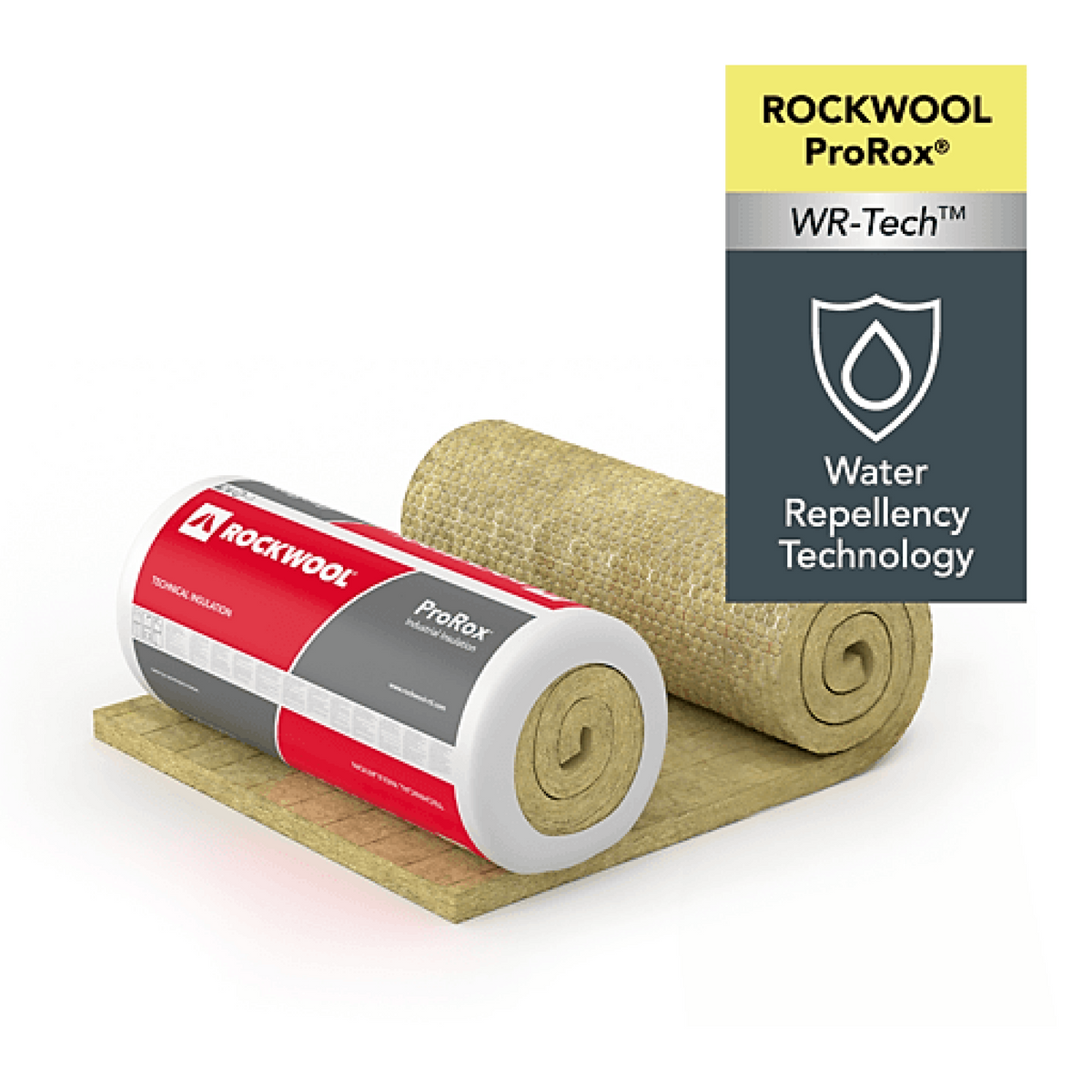

What does WR-Tech mean?
WR-Tech is ROCKWOOL's water-repellent binder technology, developed to reduce water absorption and help mitigate the risk of corrosion under insulation in suitable industrial systems.
