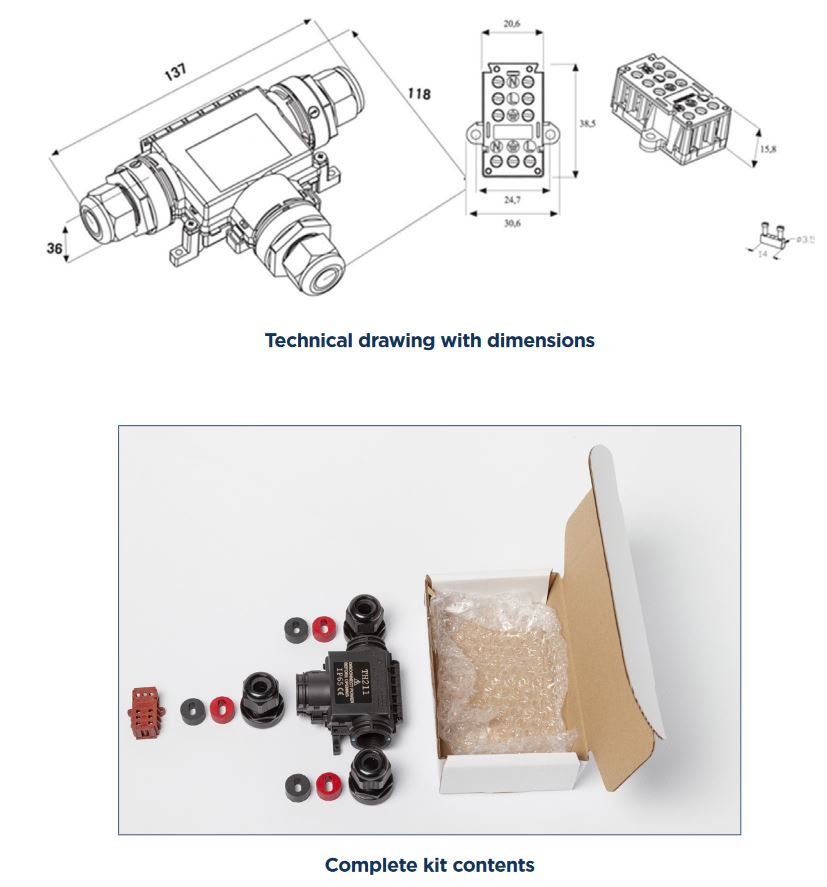

SOLCO SP-3JB Connectabox 3-Way Trace Heating Junction Box
The SOLCO SP-3JB Connectabox is a compact, T-shaped junction box designed for electrical connections in commercial trace heating systems.
Featuring three cable entries and an internal terminal block, the Connectabox is designed to accommodate power and heating cable connections, including splice and tee configurations.
Its IP65-rated, weatherproof enclosure is manufactured from PA66 / SEBS / TPE materials and provides a practical connection solution for suitable SOLCO Pyroelec trace heating installations.
The internal connection system features 3 x 3 terminals, rated at 32A and 450V, with a layout designed for straightforward identification of wiring connections.
Trace Heating Cable Connections Made Simple
The SP-3JB Connectabox is designed for use with SOLCO Pyroelec trace heating cable installations where a compact junction box is required.
Its three-entry configuration provides connection arrangements for a power supply and two heater circuits, or for one heater circuit branching into two heater circuits.
Power to heating cables: One power supply connected to up to two heating cable circuits.
Heating cable tee: One heating cable circuit branching into two heater circuits.
SOLCO also identifies power, end, splice, tee and elbow connection arrangements as uses for the SP-3JB.
Key Features and Benefits
T-shaped design providing three connection entry positions for trace heating installations.
Weatherproof enclosure with a manufacturer- specified IP65 protection rating.
Integrated terminal arrangement designed to assist with identification of wiring connections.
The connection terminal system is rated at 32A and 450V by SOLCO.
Enclosure manufactured from PA66 / SEBS / TPE, as specified by the manufacturer.
Designed for power, end, splice, tee and elbow connection arrangements.
Connection Applications
Connect a suitable electrical supply to trace heating circuits.
Create a heating cable branch using the manufacturer's three-entry connection arrangement.
Join compatible heating cable sections within a suitable termination arrangement.
SOLCO SP-3JB Technical Specifications
| Specification | SP-3JB Connectabox |
|---|---|
| Manufacturer | SOLCO Pyroelec |
| Manufacturer Model | SP-3JB |
| Product Name | Connectabox |
| Product Type | Trace Heating Junction Box |
| Enclosure Shape | T-Shaped |
| Number of Cable Entries | 3 |
| Enclosure Materials | PA66 / SEBS / TPE |
| Ingress Protection | IP65 |
| Minimum Temperature Rating | -40°C |
| Maximum Temperature Rating | +125°C |
| Terminal Arrangement | 3 x 3 Terminals |
| Terminal Current Rating | 32A |
| Terminal Voltage Rating | 450V |
| Supported Connection Types | Power, End, Splice, Tee and Elbow |
| Primary Application | Commercial Trace Heating Connections |
Specifications are based on SOLCO's published SP-3JB product information. Terminal ratings and enclosure temperature ratings must not be interpreted as universal heating cable circuit ratings.
Installation and Connection Requirements
The SP-3JB is designed for appropriate trace heating cable connection arrangements using its supplied internal terminal block.
- Confirm the connection arrangement required for the trace heating circuit.
- Verify heating cable compatibility and the required termination method.
- Select the appropriate cable seals and entry components for the installation.
- Check that the circuit electrical requirements are compatible with the terminal ratings.
- Follow SOLCO's installation and wiring instructions to preserve the specified enclosure protection.
Installation Note: Electrical connections should be completed by suitably qualified personnel. Cable compatibility, entry sealing and correct circuit protection must be verified for the installation.
