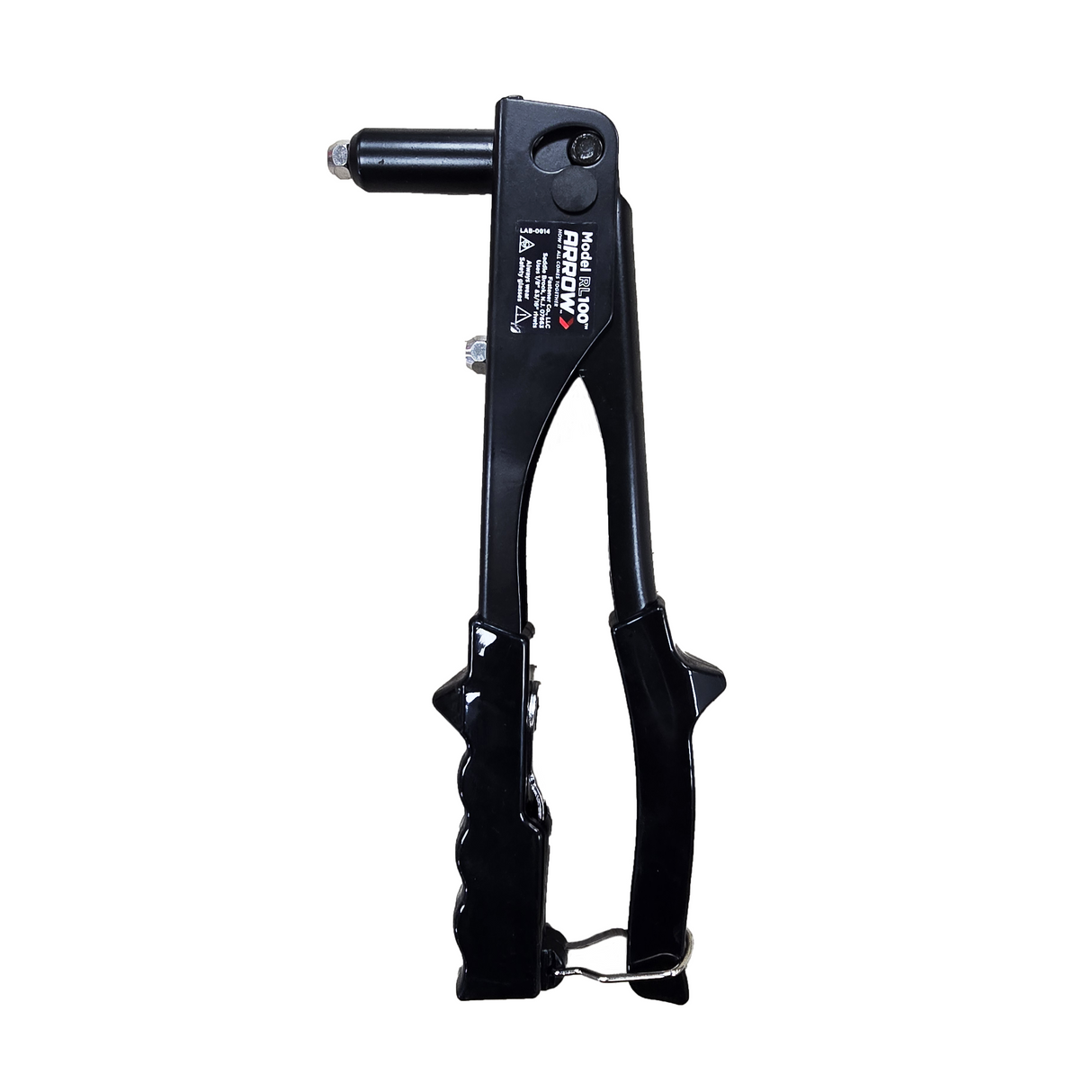

Arrow RL100 Rivet Tool
A practical manual rivet gun for joining sheet metal and fitting aluminium and Aluzinc insulation cladding. A useful addition to the toolbox for insulation contractors, M&E installers, HVAC engineers, maintenance teams and fabricators.

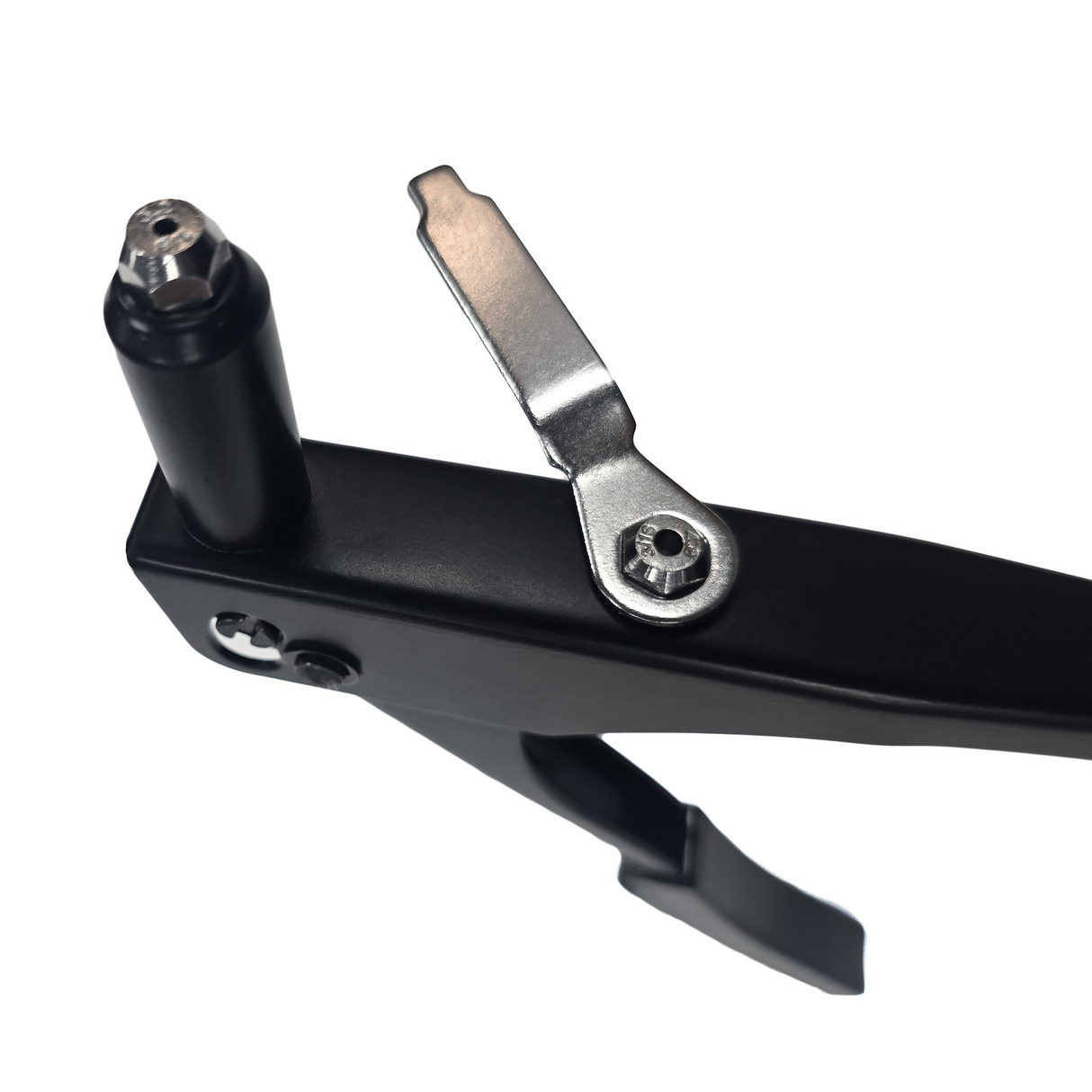

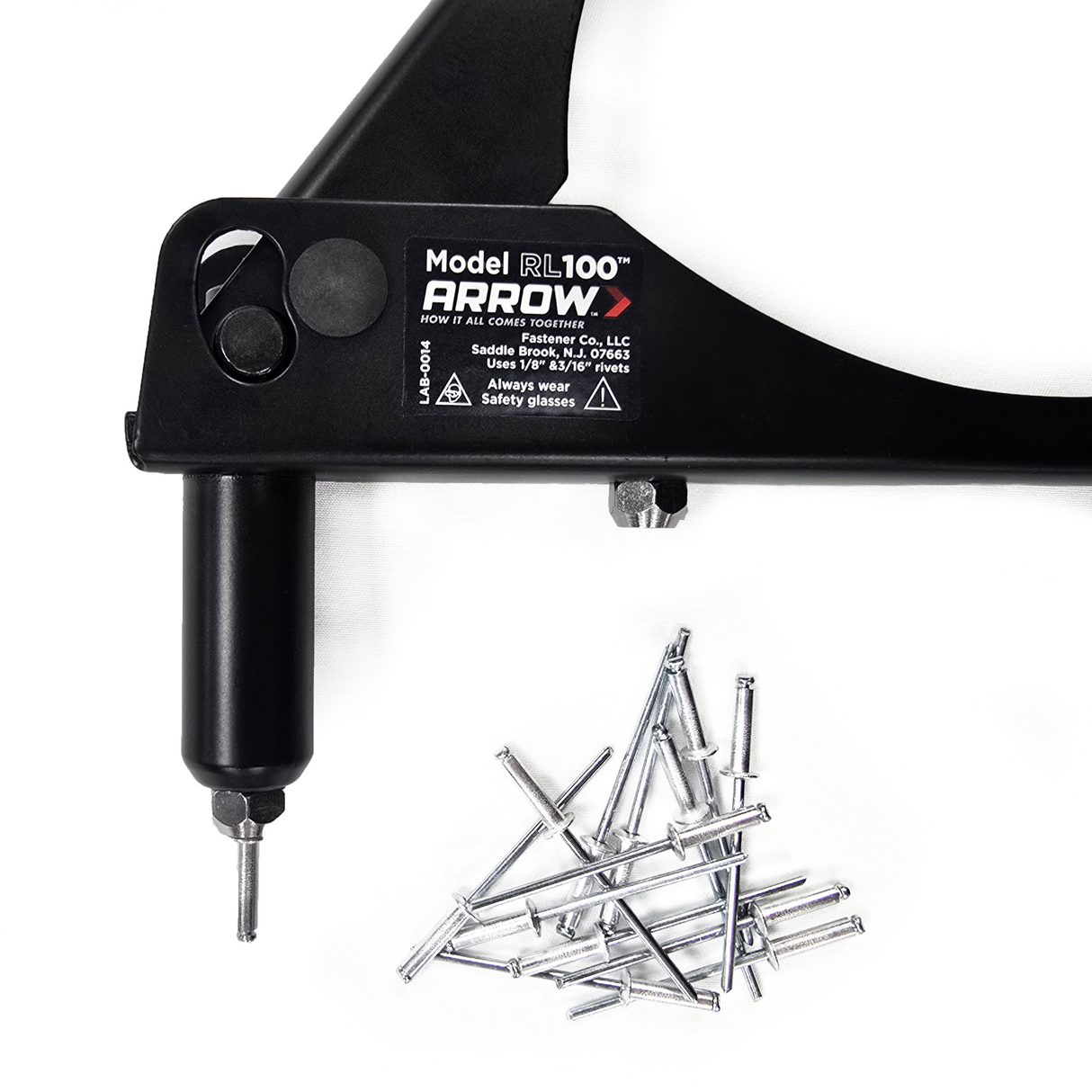

The Arrow RL100 combines durable steel construction with a spring-loaded handle and comfortable vinyl grip for straightforward manual riveting. Its changeable nosepiece allows the tool to accept common rivet diameters including 1/8", 5/32" and 3/16".
Our 3.2mm x 12mm Aluminium/Steel Insulation Fixing Rivets are a natural companion product for cladding installation. A 3.2mm rivet is the nominal metric equivalent of the RL100's 1/8" rivet size.
Shop Fixing RivetsWhy Choose the Arrow RL100?
Ideal for Insulation Cladding Installation
The Arrow RL100 provides installers with a simple manual method for fastening overlapping cladding sections and fabricated sheet-metal components.
- Aluminium insulation cladding
- Aluzinc insulation cladding
- Rolled pipe casing
- Segmented bends
- Elbows
- Cladding tees
- End caps
- Valve and flange boxes
- HVAC sheet-metal work
- Maintenance and repair work
How to Use the Arrow RL100 Rivet Tool
-
1
Position the materials. Fit and overlap the cladding or sheet-metal components in their required final position.
-
2
Mark the fixing point. Mark the position of each rivet so the fixing pattern remains neat and consistent.
-
3
Drill the fixing hole. Drill through the overlapping materials using a hole size suitable for the rivet being fitted.
-
4
Select the correct nosepiece. Set the RL100 nosepiece to match the diameter of the rivet being installed. For a 3.2mm rivet, use the nominal 1/8" size.
-
5
Load the rivet. Insert the rivet mandrel into the tool, then place the rivet body fully through the prepared hole.
-
6
Set the rivet. Keep the tool square to the fixing and squeeze the handles firmly. Repeat the action if required until the rivet sets and the mandrel breaks away.
-
7

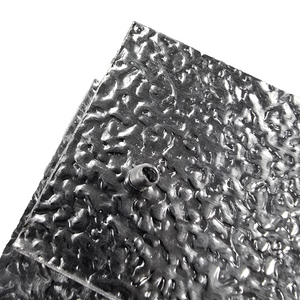

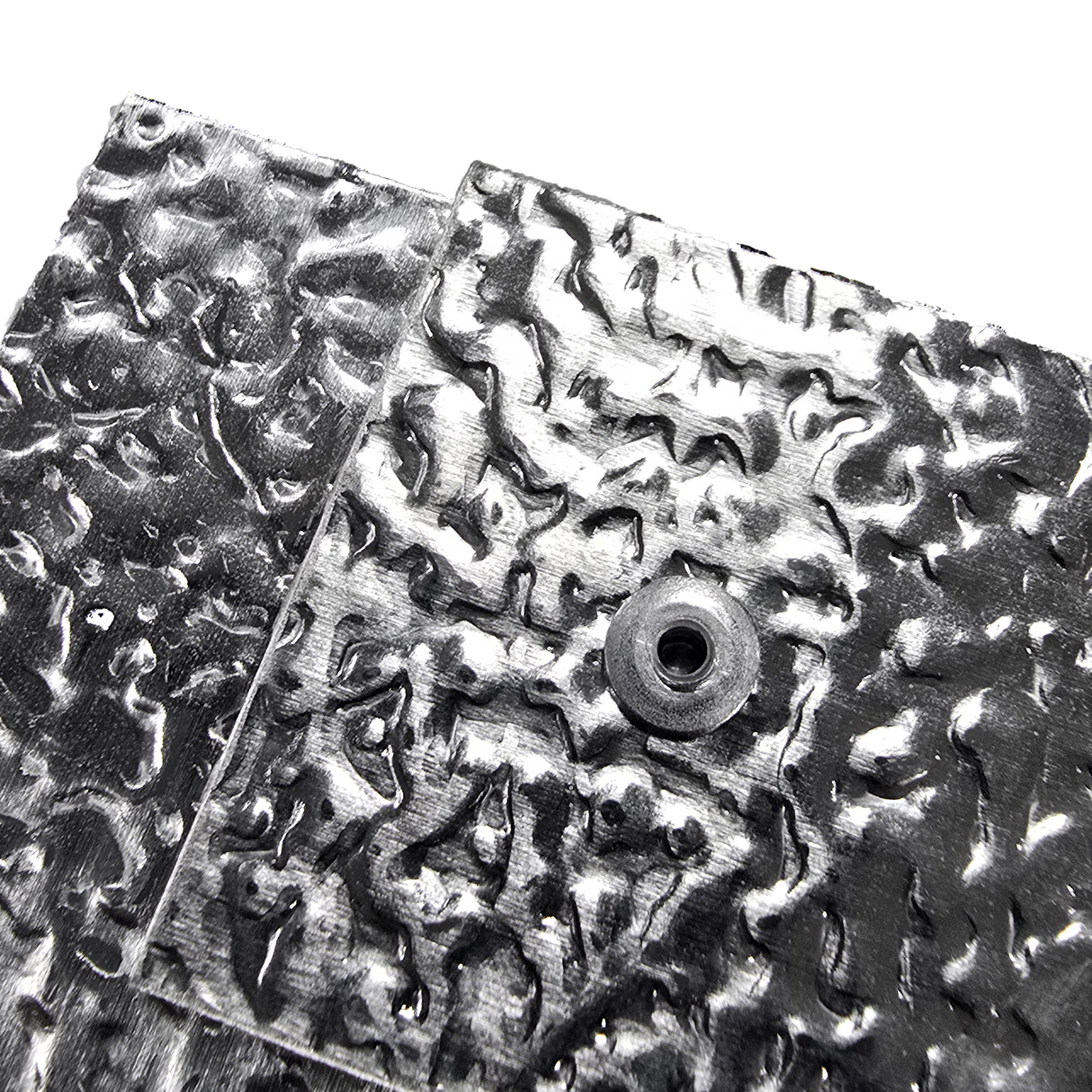

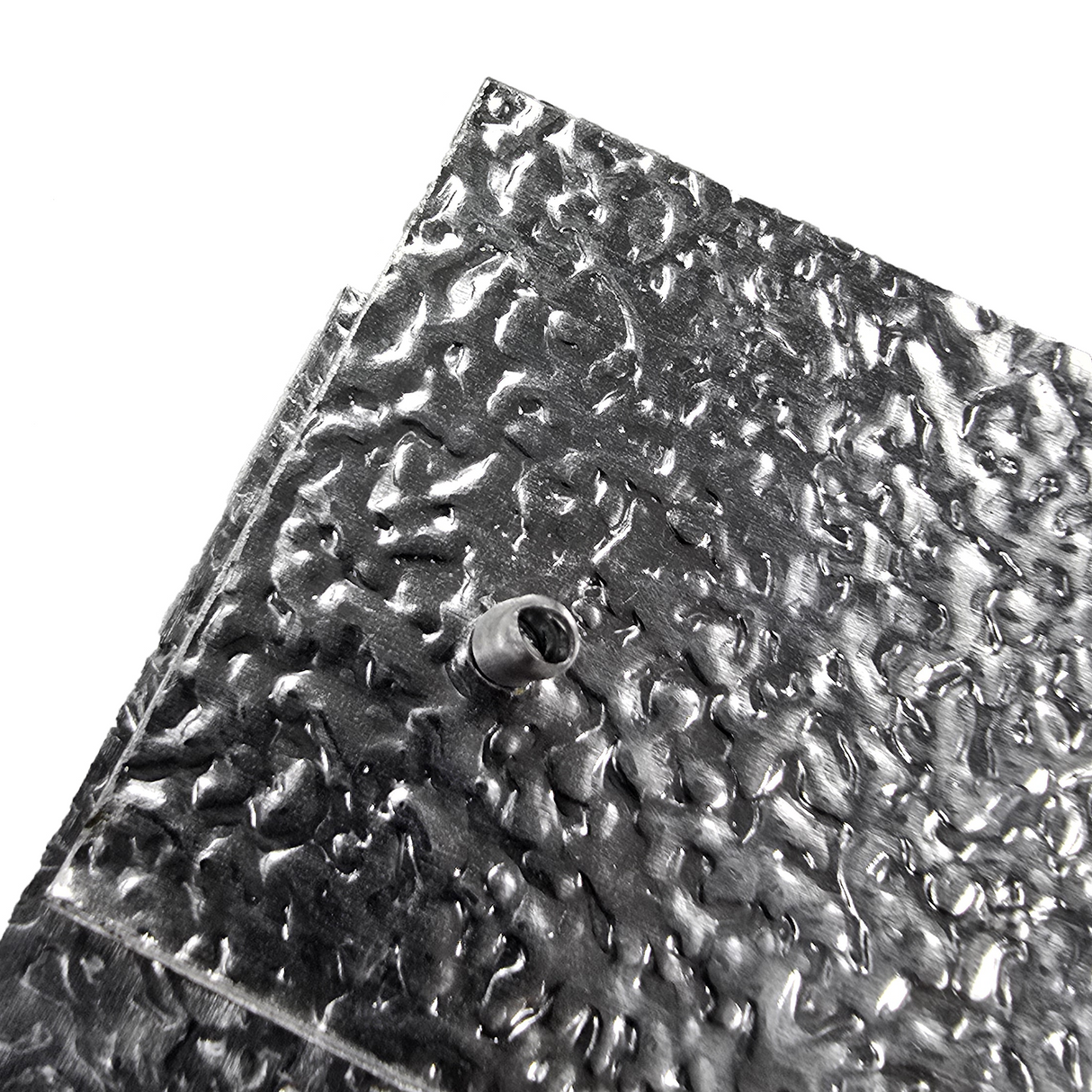

Check the finished joint. Make sure the rivet head is seated firmly against the cladding and the joint is secure before moving on to the next fixing.

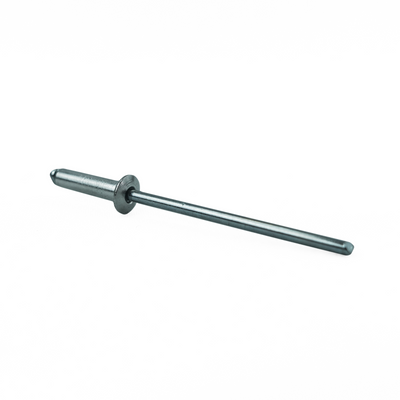

Insulation Fixing Rivets
3.2mm x 12mm Aluminium/Steel rivets for insulation cladding and sheet-metal fixing.
Shop Rivets

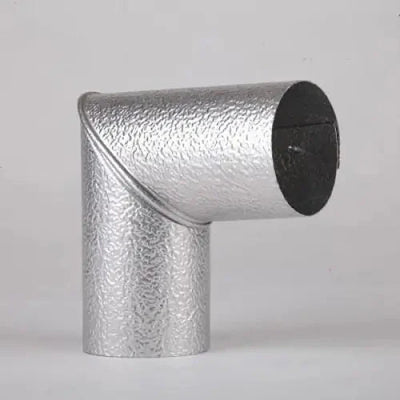

Aluminium Cladding
Browse aluminium rolled casing, bends, elbows, tees, end caps and fabricated cladding components.
Shop Aluminium Cladding
Aluzinc Cladding
Browse Aluzinc rolled casings, bends, elbows, tees, valve boxes, flange boxes and end caps.
Shop Aluzinc Cladding
All Insulation Cladding
Explore the wider range of aluminium, Aluzinc, self-adhesive, Isogenopak and PIB cladding solutions.
Browse All CladdingNeed Help With a Cladding Project?
From a small repair to a larger commercial requirement, Insulation & More can help with cladding, insulation, fixings and associated installation products. If you're unsure what you need, send our technical team your application details, dimensions, photographs or product schedule.
