Rockwool Foil Faced Pipe Insulation/Pipe Lagging (1m)

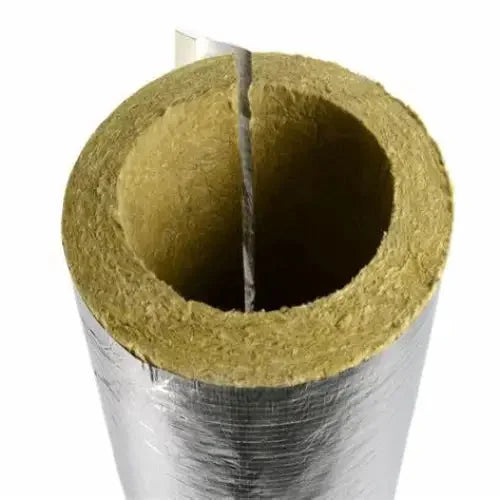

What is Rockwool Foil Faced Pipe Insulation?

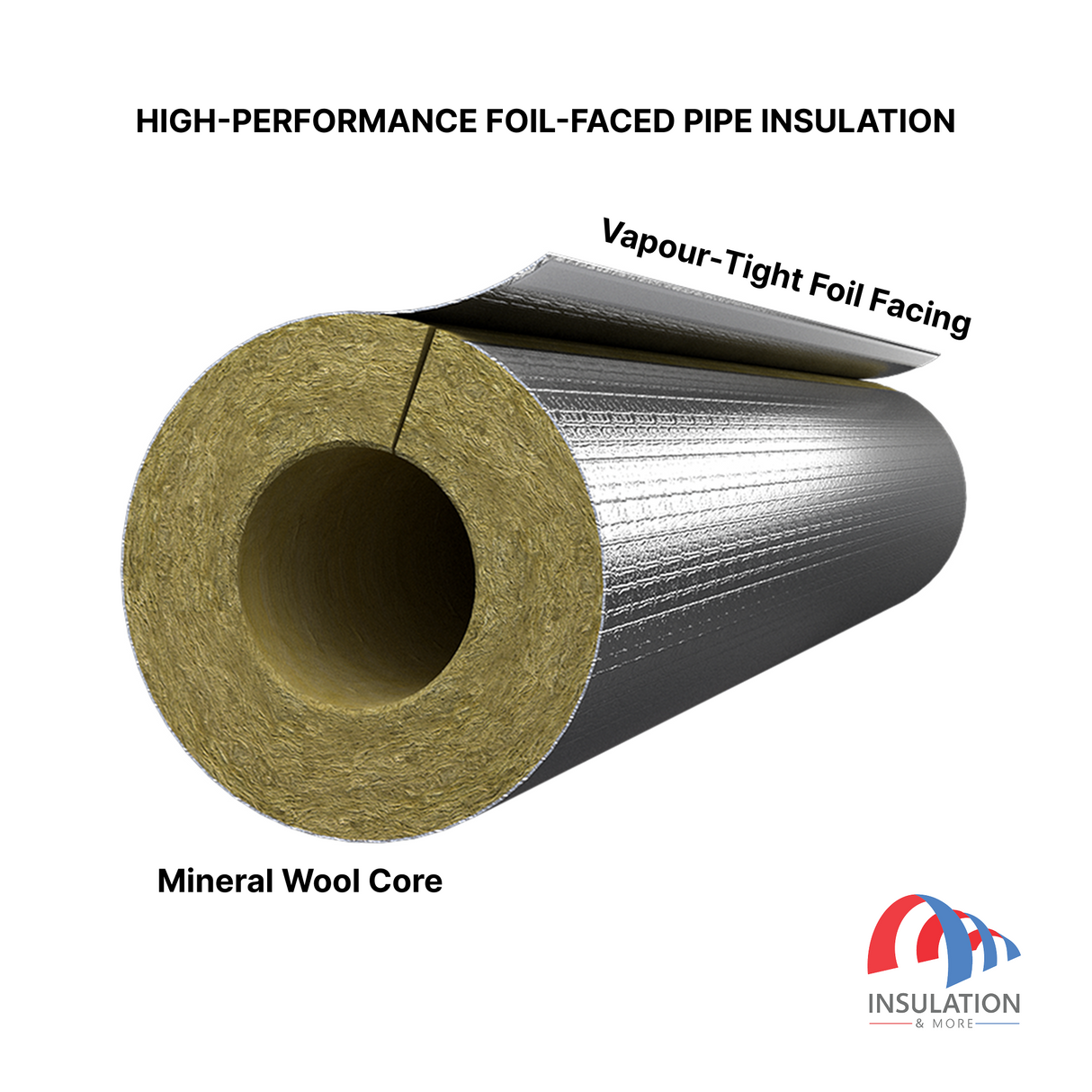

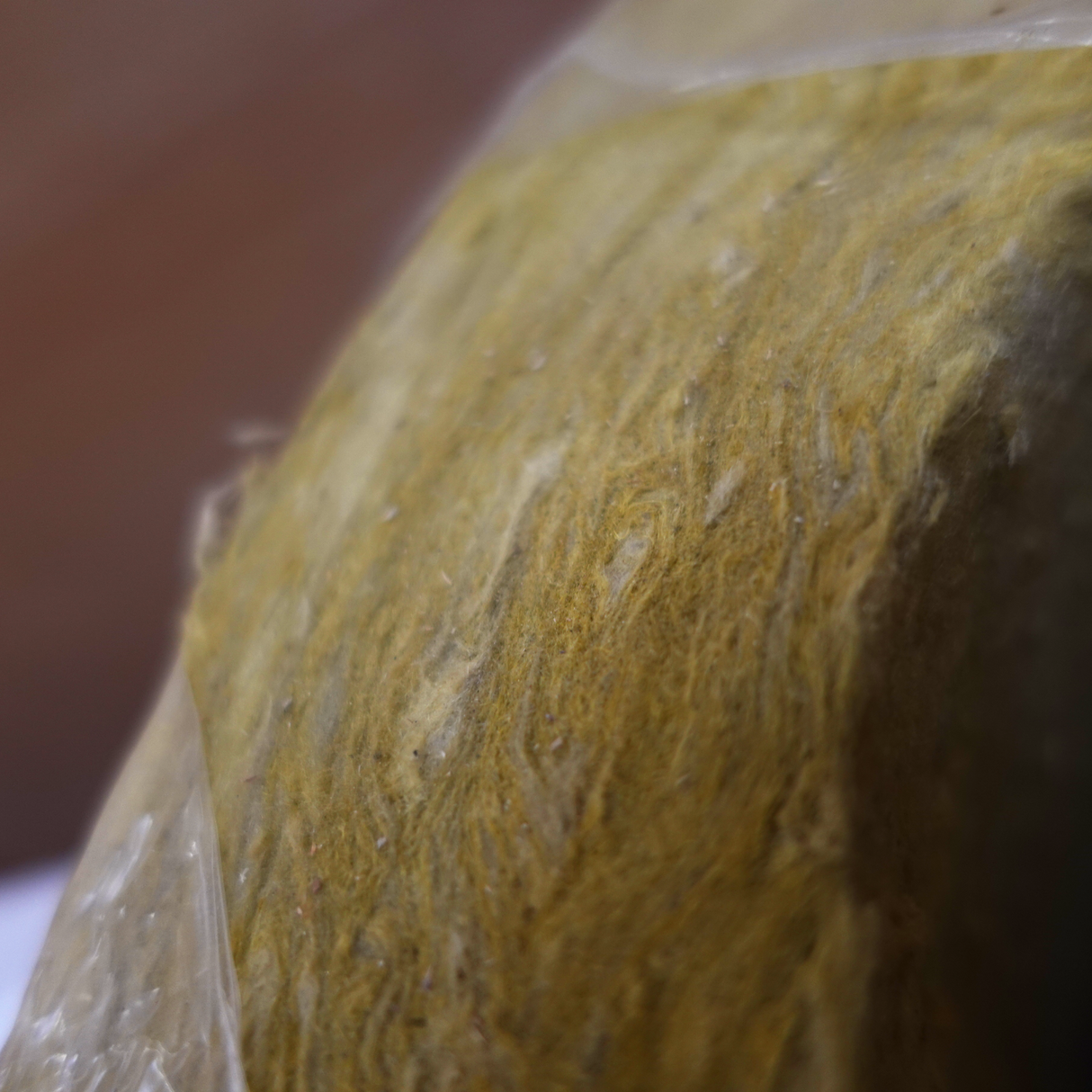

This product is used to insulate pipework on heating, ventilation and air-conditioning systems. The mineral wool core helps reduce heat loss, support acoustic performance and provide fire-resistance benefits, while the foil facing helps create a neat finish and supports vapour-control detailing when joints are correctly sealed.

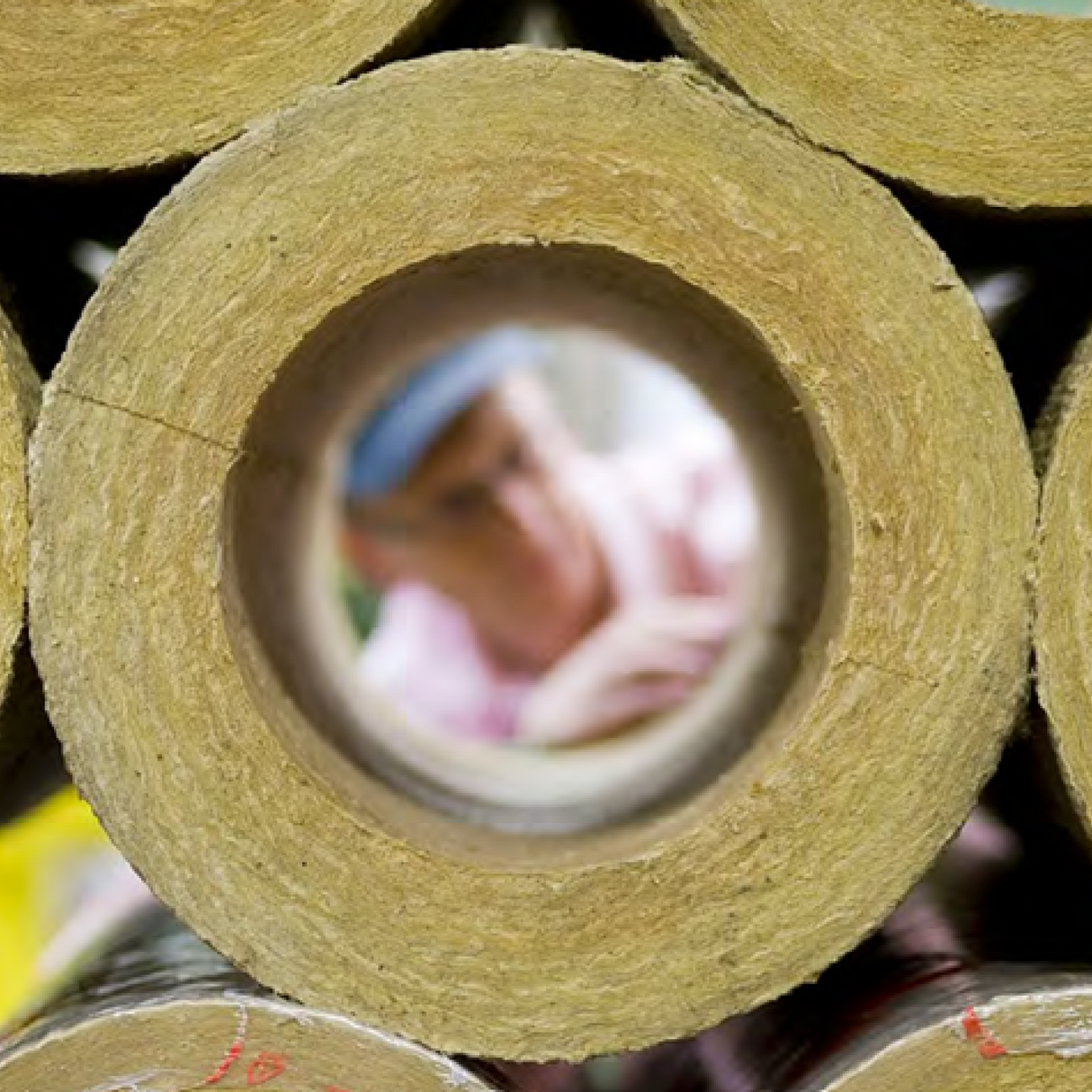

The pre-slit section is designed to open around the pipe, close around the outside diameter and seal along the foil lap without needing to cut pipe insulation from flat sheet material.

How to Apply Rockwool Foil Faced Pipe Insulation

Rockwool foil faced pipe insulation is designed to be quick and practical to fit on straight pipe runs. The pre-formed section opens around the pipe, while the self-adhesive foil lap helps close the insulation neatly along the length of the section.

This is a basic installation guide only. Always follow the project specification, manufacturer guidance and competent installer practice.

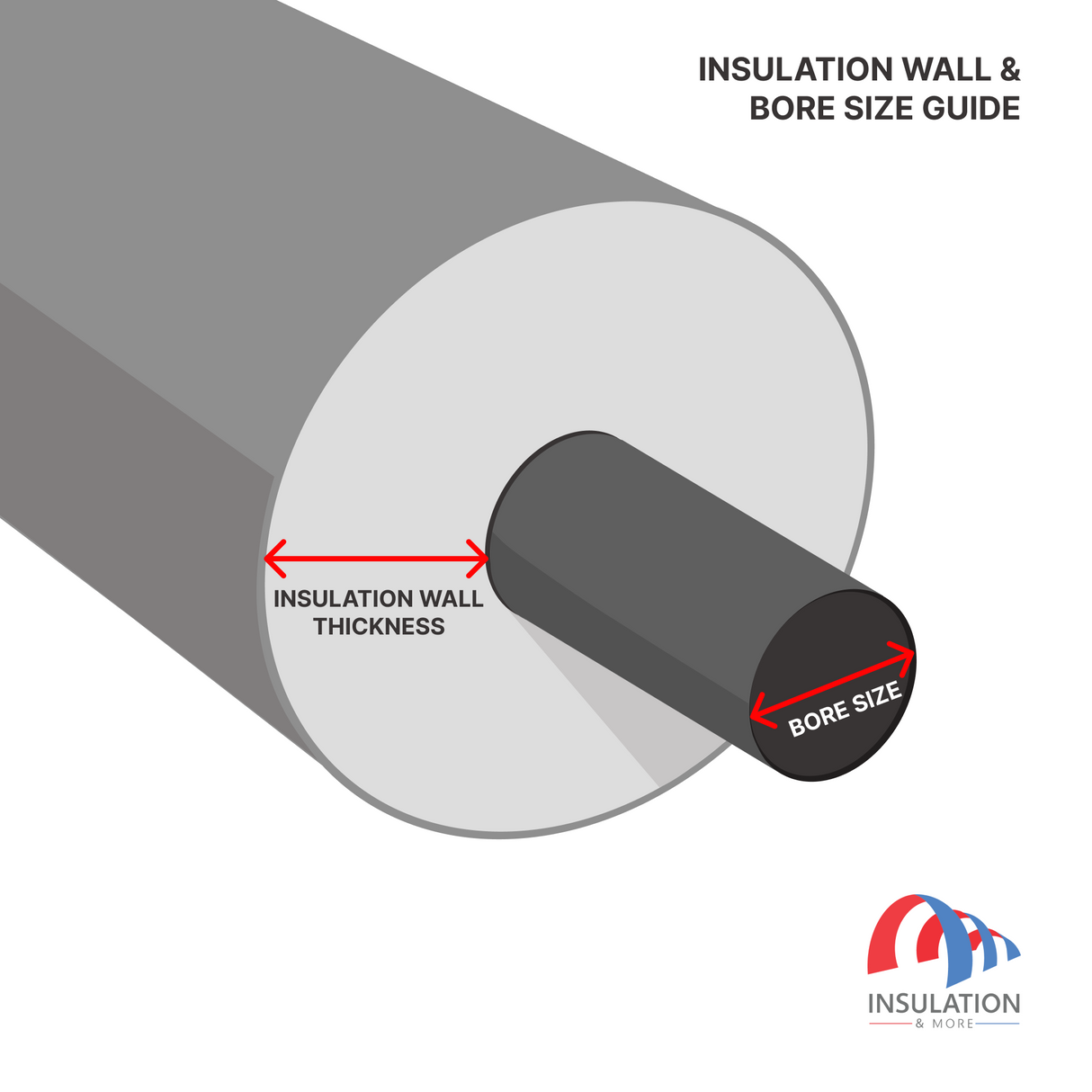

Check Pipe OD and Wall Thickness

Confirm the pipe outside diameter and choose the correct insulation wall thickness before ordering or fitting.

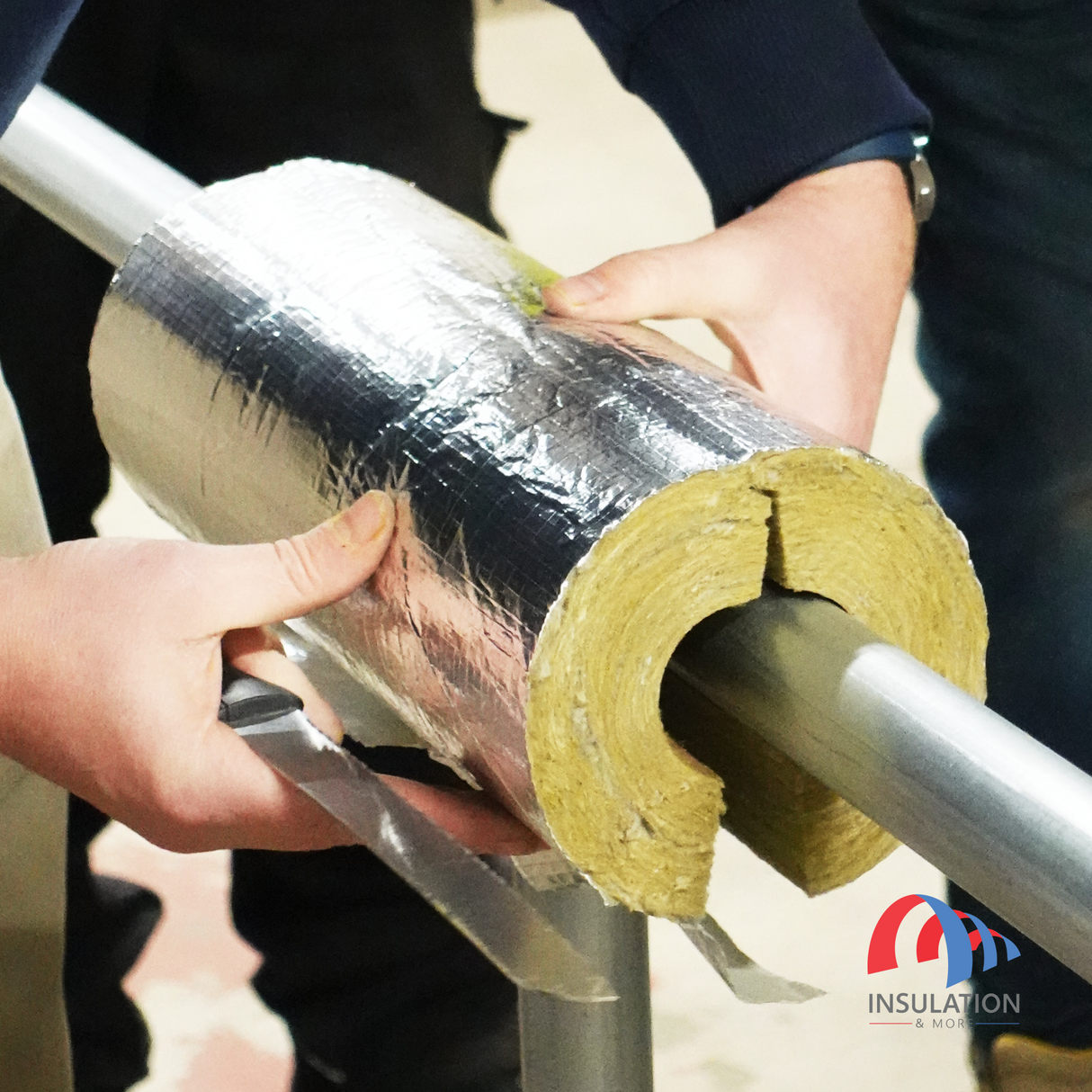

Fit Around the Pipe

Open the pre-slit Rockwool section and position it around the pipe without leaving gaps or compressing the insulation.

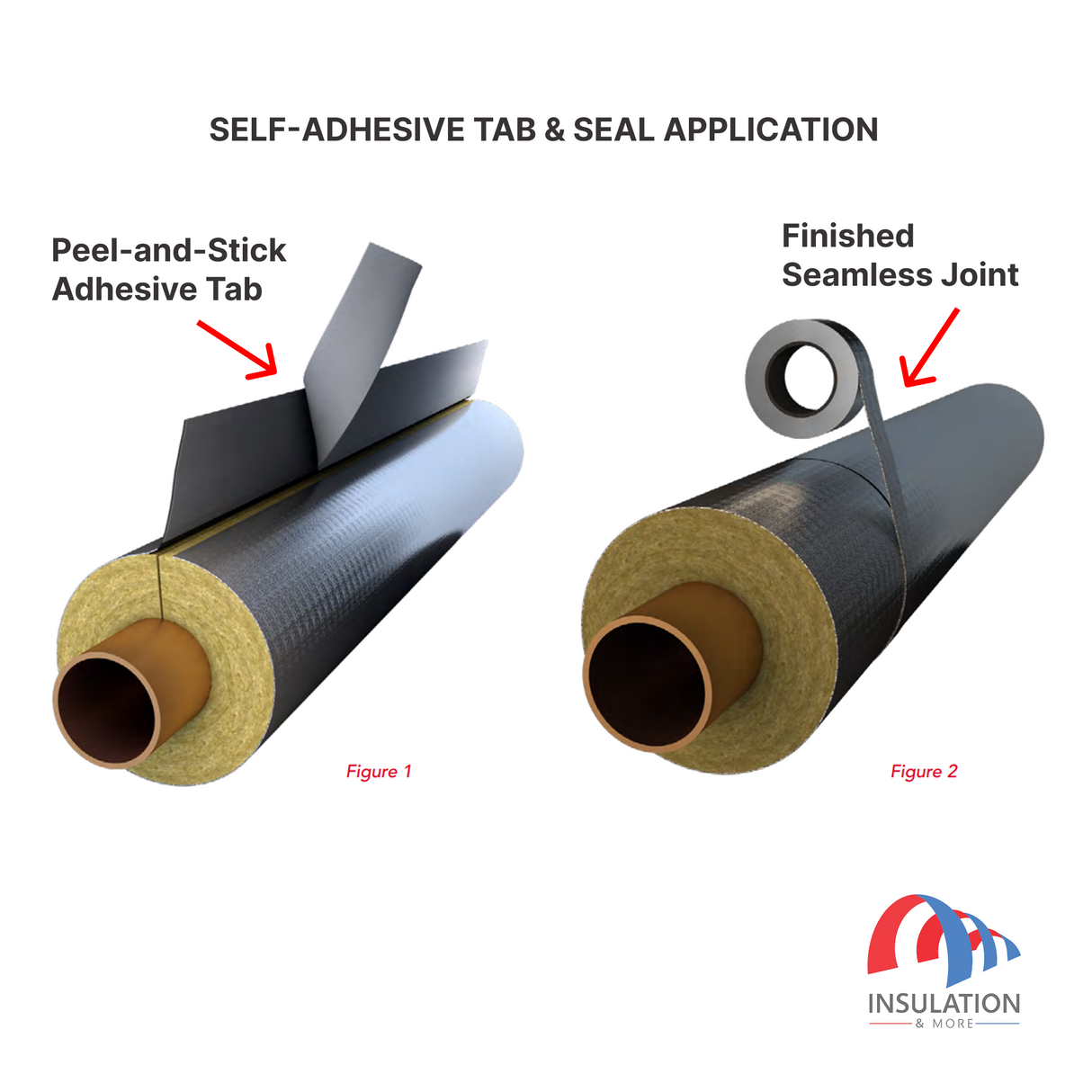

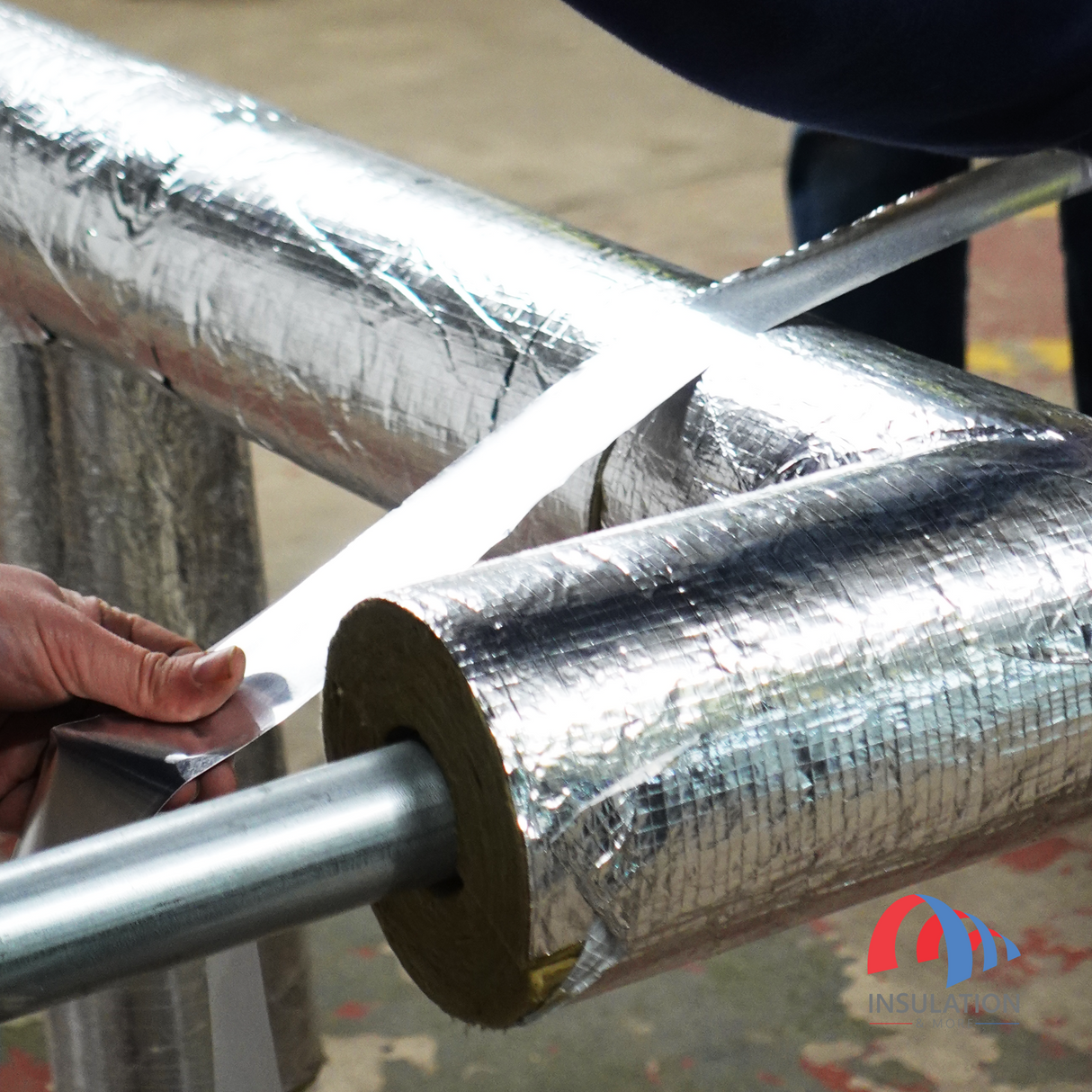

Peel and Seal the Foil Lap

Remove the backing from the self-adhesive foil lap and press it down along the full length of the insulation section.

Seal the Joints

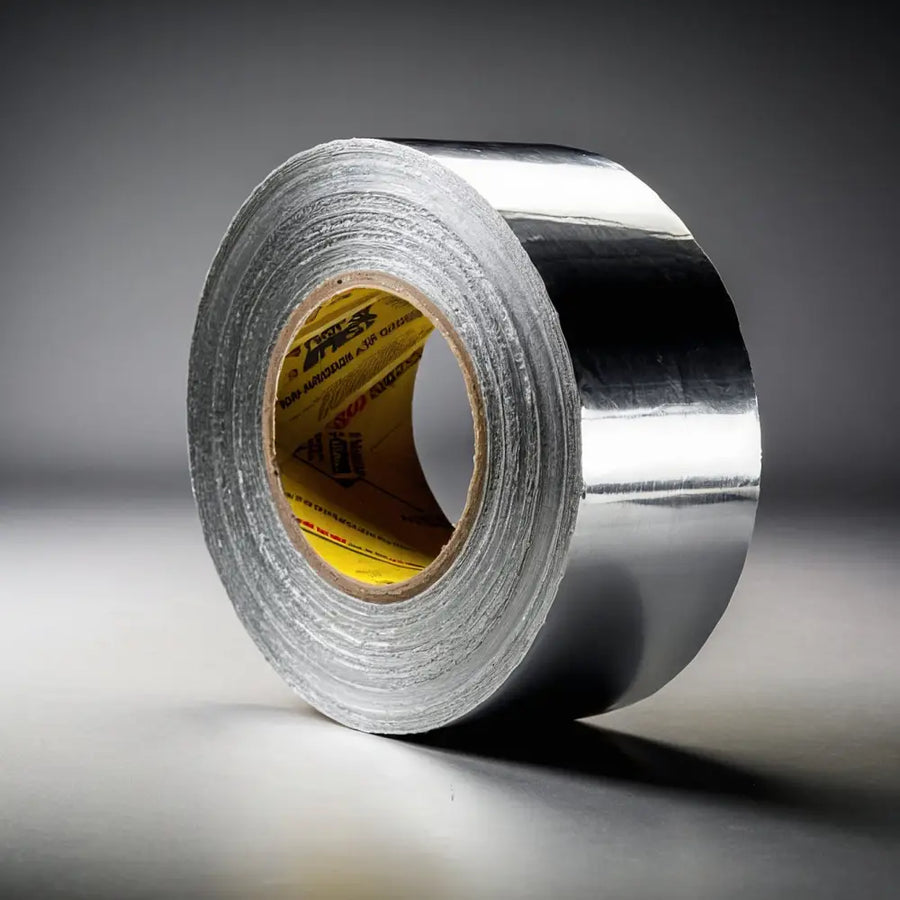

Use suitable aluminium foil tape on joints, ends and details to help maintain a neat sealed finish.

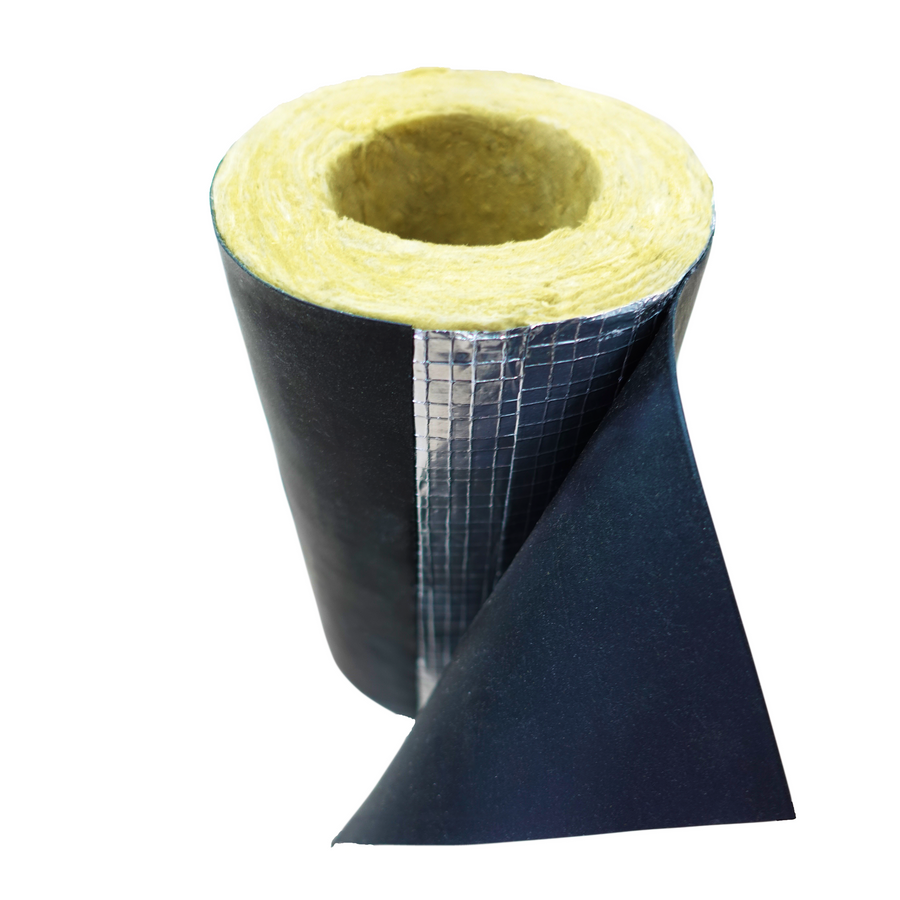

For external or exposed installations, this product should be protected with a suitable waterproof covering or cladding system. For weatherproof pipework routes, consider Rockwool Pipe Insulation in PIB Cladding, PIB Cladding, Aluminium Cladding or Aluzinc Cladding.

Technical Specification

The table below summarises the main technical details for the Rockwool foil faced pipe insulation product route.

Typical Applications

Rockwool Foil Faced Pipe Insulation is commonly used on building services pipework where thermal insulation, acoustic support and a neat foil finish are required.

• Heating pipework
• Hot water pipework
• HVAC pipework
• Commercial plant rooms
• Industrial buildings and mechanical service areas
• Ventilation and air-conditioning pipework
• Internal pipe runs requiring mineral wool pipe lagging
• Pipework passing through suitable fire-rated constructions, subject to the correct tested system and specification

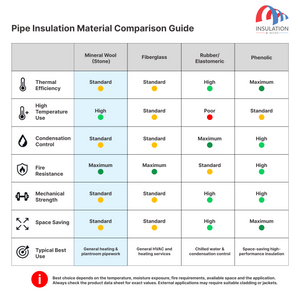

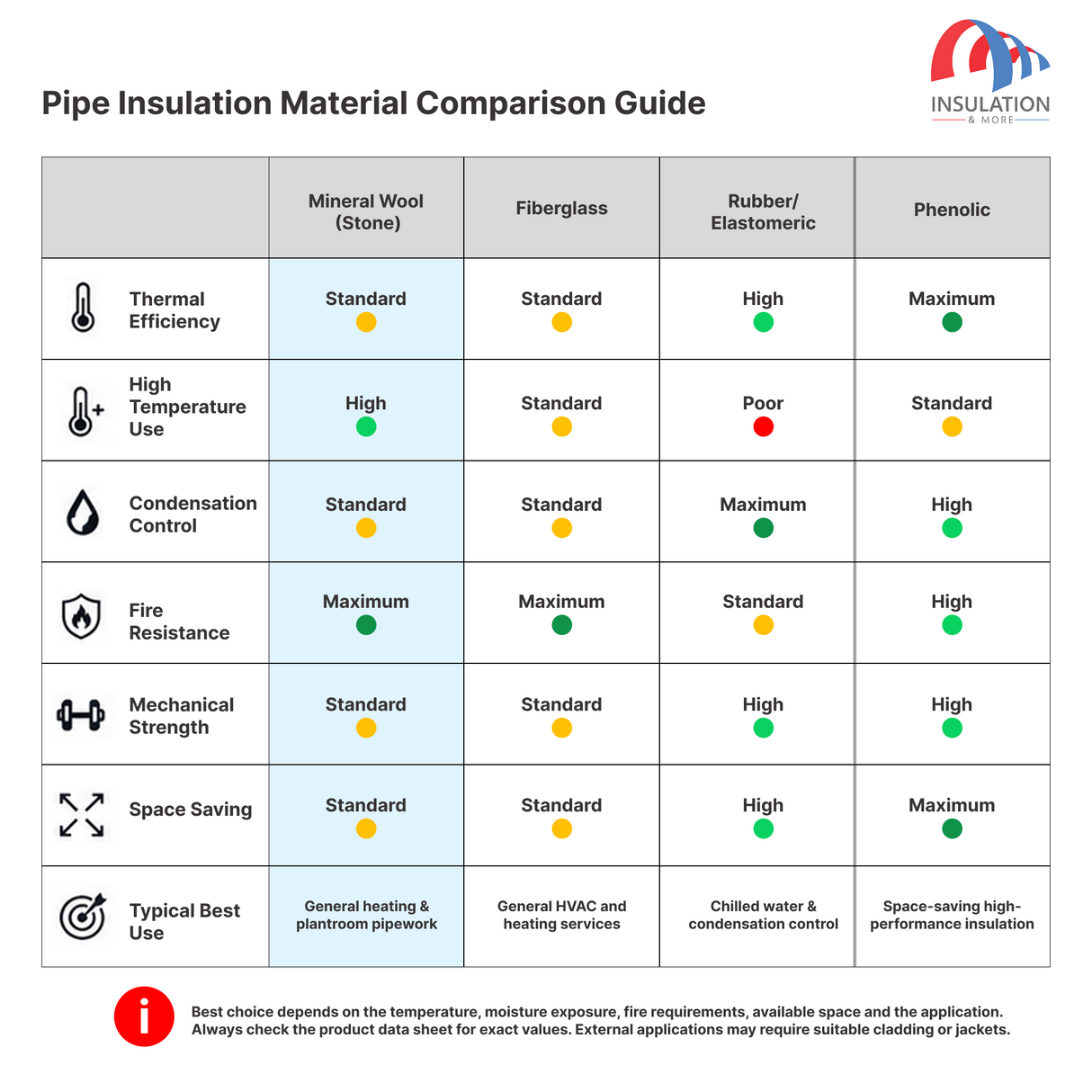

Mineral Wool vs Other Pipe Insulation Materials

Different pipe insulation materials are used for different reasons. Mineral wool pipe insulation is not always the thinnest option, but it is a strong all-round choice for commercial and industrial pipework where thermal performance, non-combustibility, acoustic benefit and service temperature range matter.

Fibreglass pipe insulation is also a mineral wool product, but it is made from glass fibres rather than stone wool. It is commonly used for HVAC and building-services pipework. Rubber pipe insulation is a closed-cell elastomeric material often selected for condensation control on chilled or cold-water services. Phenolic pipe insulation is usually selected where a thinner insulation thickness is required for strong thermal performance.

Mineral Wool / Stone Wool

Best suited where fire performance, acoustic support, higher service temperatures and robust pipe insulation are key priorities.

View Mineral Wool Pipe

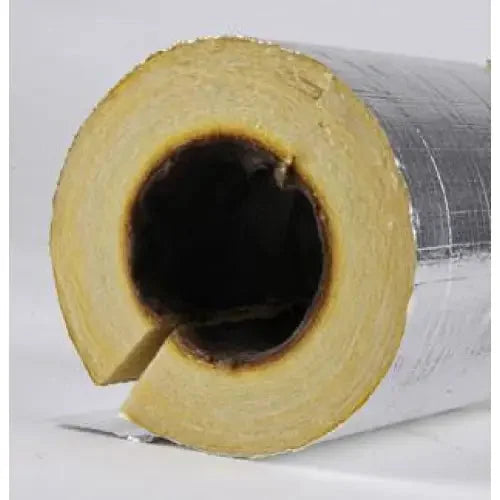

Fibreglass Pipe Insulation

Commonly used for HVAC and building-services pipework where a foil-faced glass wool pipe section is required.

View Fibreglass Pipe

Rubber Pipe Insulation

Closed-cell elastomeric insulation often selected for chilled water, cold-water services and condensation-control applications.

View Rubber Pipe

Phenolic Pipe Insulation

Often chosen where strong thermal performance is required in a thinner wall thickness or specification-led pipework system.

View Phenolic Pipe

The right pipe insulation material depends on the service temperature, pipe size, location, condensation risk, fire requirements, available space and whether the pipework is internal or exposed. If you are unsure, send us the pipework schedule and we can help identify the most suitable product route.

Is This Product Right for Your Project?

This product is a strong option for internal HVAC, heating and mechanical pipework where a pre-formed stone wool pipe section and foil faced finish are required.

For external or exposed pipework, the foil faced pipe section should be protected with a suitable weatherproof covering. For that type of application, view Rockwool Pipe Insulation in PIB Cladding, PIB Cladding, Aluminium Cladding or Insulation Cladding.
