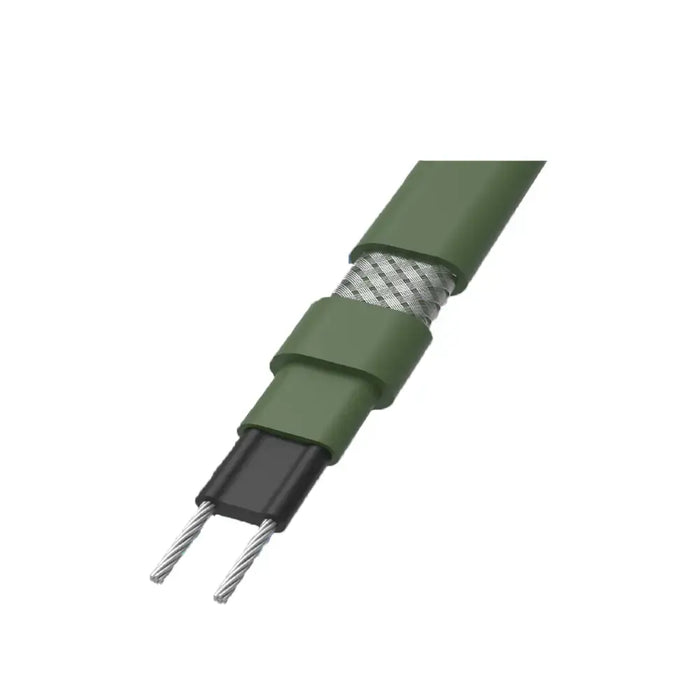

HSR Self-Regulating Heating Cable
SOLCO PYROELEC HSR is a self-regulating trace heating cable designed for freeze protection and temperature maintenance.
SOLCO PYROELEC specifies HSR for freeze protection of water pipelines, temperature maintenance in petrochemical and gas plants, and suitable hazardous Ex applications.
HSR automatically changes its thermal performance in response to temperature and provides independent heat-output control along the length of the cable.
What Is HSR Heating Cable Used For?
The HSR range is designed for applications where electrical trace heating is required for freeze protection or temperature maintenance.
Water Pipeline Freeze Protection
SOLCO PYROELEC specifically lists freeze protection of water pipelines as an HSR application.
Process Temperature Maintenance
HSR is also specified for temperature maintenance within petrochemical and gas plants.
Hazardous Ex Locations
SOLCO PYROELEC lists the HSR range for suitable hazardous Ex applications.
How Does HSR Self-Regulating Cable Work?
HSR changes its thermal performance in response to temperature and provides independent heat-output control along the cable.
Temperature Changes
The heating requirement changes as the temperature around the cable changes.
Cable Self-Regulates
HSR changes its thermal performance automatically in response to the temperature around the cable.
Independent Heat Output
Heat output is independently controlled along the length of the heating cable.
HSR Key Features
Thermal performance changes automatically in response to temperature.
Heat output is independently controlled along the cable length.
SOLCO PYROELEC states that HSR will not burn or overheat, even when overlapped.
Cable can be cut to the required length to suit installation conditions.
The manufacturer states that soft power switching improves energy efficiency and contributes to longer service life.
Designed for straightforward powering and splicing.
Available from Insulation & More in 10, 16, 24 and 30W/m versions.
The HSR-CP cable supplied by Insulation & More uses the FR polyolefin outer-jacket configuration.
HSR Cable Options
Insulation & More supplies four HSR-CP power outputs. Choose the required wattage from the product options above.
10W/m self-regulating heating cable.
16W/m self-regulating heating cable.
24W/m self-regulating heating cable.
30W/m self-regulating heating cable.
HSR Technical Specification
The following technical information is based on the current SOLCO PYROELEC HSR manufacturer specification.
| Product Type | Self-regulating heating cable |
|---|---|
| Applications | Freeze protection of water pipelines and temperature maintenance for petrochemical and gas plants |
| Available Outputs | 10W/m, 16W/m, 24W/m and 30W/m |
| Rated Voltage Range | 100–120Vac and 200–277Vac |
| Maximum Maintain Temperature – Power ON | 65°C |
| Maximum Continuous Exposure – Power OFF | 85°C |
| HSR102 Approx. Dimensions | 11.2mm × 5.6mm |
| HSR242 Approx. Dimensions | 11.2mm × 5.6mm |
| HSR302 Approx. Dimensions | 13.5mm × 5.6mm |
| Bus Wire | ASTM B355 Class 2 NPC AWG16 |
| Outer Jacket | FR Polyolefin (CP) |
| Cut to Length | Yes |
| Overlap Capability | Manufacturer states HSR will not burn or overheat even when overlapped |
HSR Standards
SOLCO PYROELEC lists the following international standards for the HSR self-regulating heating cable range.
IEC 60079-0:2011
Part 0 – General Requirements.
IEC 60079-30-1:2007
Electrical resistance trace heating – general and testing requirements.
IEC 60079-7:2006
Equipment protection by increased safety “e”.
Build Your Complete Trace Heating System
Heating cable is one component of a complete trace heating installation. Browse the related control, connection, fixing and insulation ranges for your project.
Heating Cable
Choose from our range of self-regulating and other trace heating cables.
View Heating Cables →Connections & Fixings
Find termination, connection and fixing components used with trace heating installations.
Shop Accessories →Pipe Insulation
Browse pipe insulation products for completing the insulated pipework system.
Shop Pipe Insulation →⚠️ Cut-to-Size Cable
HSR self-regulating heating cable is supplied to the length ordered. Please check the required cable length carefully before placing your order.
Cut-to-size products may be subject to specific returns conditions. Please see our Refund & Returns Policy →
Complete Your Trace Heating Installation
Add suitable temperature control, connections and installation accessories to your HSR trace heating system.
Not Sure Which HSR Output You Need?
HSR is available from Insulation & More in 10, 16, 24 and 30W/m versions.
Contact our team with your pipework and project requirements and we can help you identify the appropriate trace heating product route and related components.
Frequently Asked Questions
SOLCO PYROELEC specifies HSR for freeze protection of water pipelines and temperature maintenance in petrochemical and gas plants. The manufacturer also lists HSR for suitable hazardous Ex applications.
Insulation & More supplies HSR-CP in 10W/m, 16W/m, 24W/m and 30W/m versions.
HSR changes its thermal performance in response to temperature and provides independent heat-output control along the cable.
Yes. SOLCO PYROELEC states that HSR can be cut to the required length to suit installation conditions.
Yes. SOLCO PYROELEC states that HSR will not burn or overheat even when overlapped.
The manufacturer specifies a maximum maintain temperature of 65°C while the cable is powered.
SOLCO PYROELEC specifies a maximum continuous exposure temperature of 85°C with power OFF.
SOLCO PYROELEC lists HSR versions for 100–120Vac and 200–277Vac supplies.
The HSR products offered on this page are the CP versions, using an FR polyolefin outer jacket.
Depending on the installation, a trace heating system may also require suitable temperature control, termination and connection products, fixing accessories and pipe insulation.
