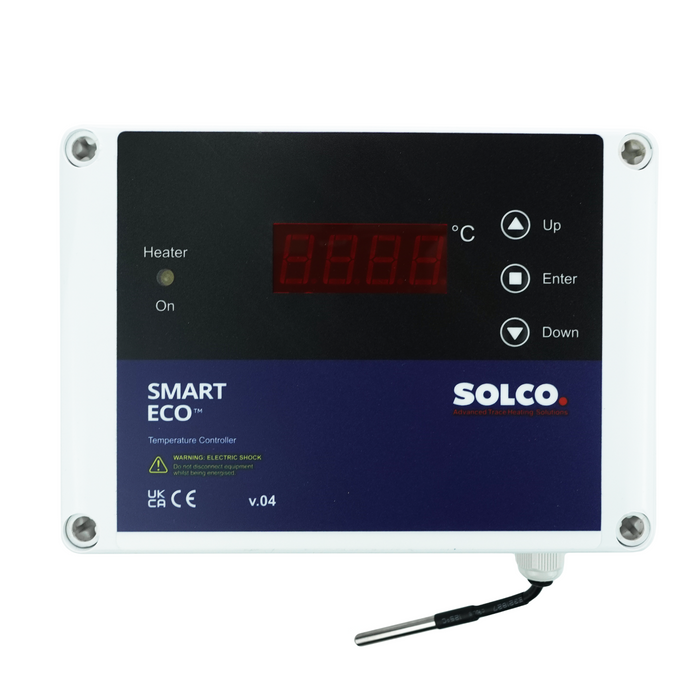

Smart-ECO Temperature Controller is an air/surface sensing programmable thermostat with a Building Management System (BMS) fault alarm relay. This product is designed for electronic temperature control in commercial heating applications. The Smart-ECO v.03 is equipped with a variety of features, including the ability to control all SOLCO PYROELEC heating cables, a user-friendly interface for easy programming, and a display that alternates between the live temperature reading and the set temperature.
Key Details
- Advanced trace heating solution
- Air/surface sensing programmable thermostat
- Compatible with all SOLCO PYROELEC heating cables
- User-friendly interface for programming
- Display showing live and set temperatures
- Building Management System (BMS) fault alarm relay
- Designed for electronic temperature control in commercial settings
Additional Details
- Thermostat Control Relay: 20A
- BMS Fault Alarm Relay: 3A SPST
- Mounting Option: Can be mounted on a pipe using a SOLCO PYROELEC support bracket
- Temperature Setting Range: -15°C to +100°C
- Supply Voltage: 100Vac (min) – 270Vac (max), 50/60 Hz
- Load Current: Maximum 20A
- Enclosure Dimensions: 125mm x 175mm x 75mm, IP66/67 ingress protection
- Temperature Sensor: NTC 10kohm, PVC cable, maximum exposure temperature for sensor (metal part) 200°C, PVC cable 100°C
- Sensor Wire Length: 3 meters, extendable up to 100 meters
- Programmable Parameters: Temperature setting, hysteresis, heater operation error handling
- Diagnosed Alarms: Includes alarms for power loss, high/low temperature limits, sensor issues, load relay error, and comms cable break
