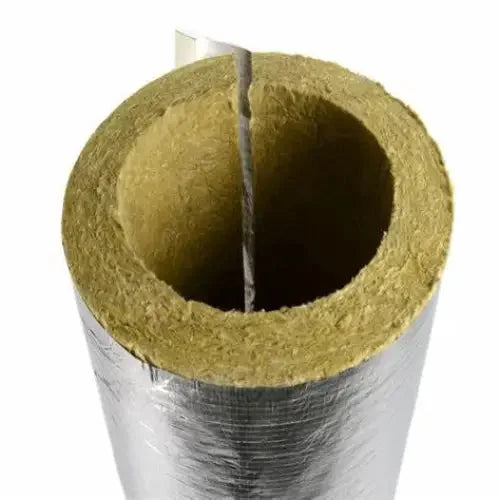

High-performance, pre-formed stone wool insulation solution designed for the effective thermal and acoustic insulation of heating, ventilation, and air-conditioning (HVAC) pipework. These pipe sections are suitable for a wide range of applications, including commercial and industrial buildings, plants, and other structures. The product's primary function is to maintain optimal temperature and control condensation in hot and cold water pipes while ensuring comfortable and stable temperatures in working environments.
Product Features
- Pre-formed stone wool insulation
- Pre-slit design with factory-applied foil facing and integral self-adhesive lap
- Water repellent
- Biologically inert and rot-proof
- Durable and dimensionally stable
Applications
- Heating, ventilation, and air-conditioning (HVAC) pipework
- Commercial and industrial buildings, plants, and other structures
Technical Properties
- CE marking: In accordance with BS EN 14303
- Reaction to fire (Euroclass): A2L-s1, d0
- Resistance to fire: Tested to BS EN 1366-3, up to 120 minutes fire resistance
- Density: 120 kg/m³
- Thermal conductivity: 0.033 - 0.034 W/mK
Temperature Range
- Service temperature: 0°C to 250°C
- Outer foil face limiting temperature: 80°C
Installation and Maintenance
- Easy installation with self-adhesive lap and backing tape
- Seal joints with foil tape to prevent condensation
- Protect insulation with a waterproof covering when used or stored in the open
- Low maintenance and long-lasting performance
