Rockwool Pipe Insulation in PIB Cladding (1m)

£14.01
£14.01
£0
Sold out
Quantity must be 1 or more

Weatherproof Rockwool Pipe Insulation

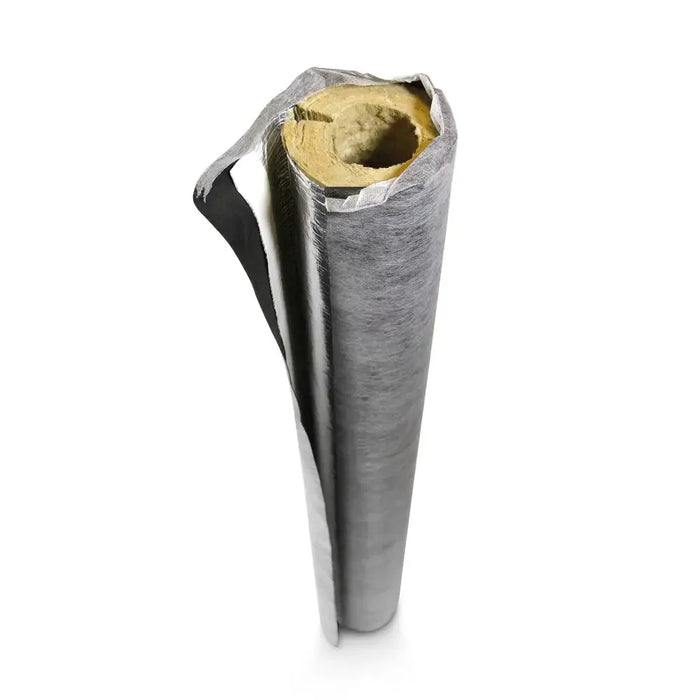

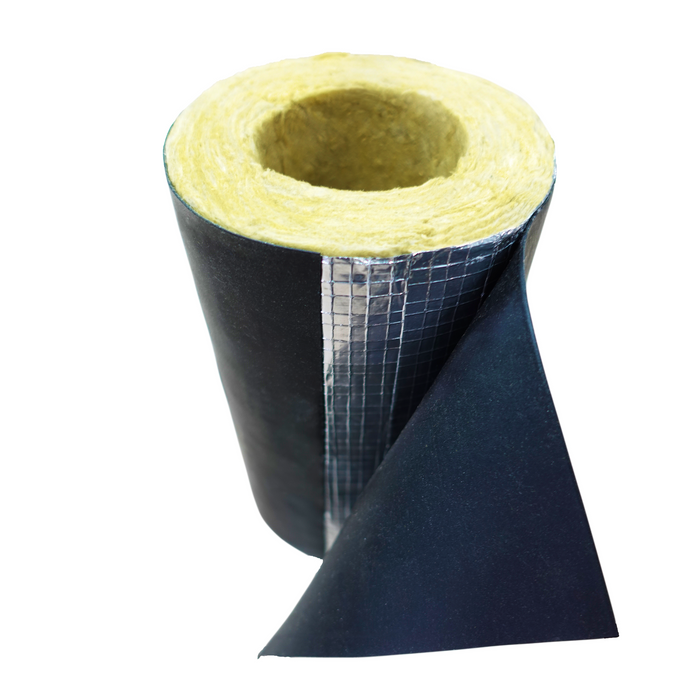

Rockwool Pipe Insulation in PIB Cladding

Rockwool Pipe Insulation in PIB Cladding is a pre-clad pipe insulation section designed for external, exposed and demanding mechanical pipework applications.

It combines a Rockwool mineral wool pipe section with a foil peel-and-stick closure and an attached PIB weatherproof cladding layer, helping contractors insulate and protect pipework in one installation process.

Need Help Choosing the Correct Pipe Size or Thickness?

Choose the insulation thickness and pipe outside diameter from the product options. If you are working from a schedule or drawing, send it to our team and we can help check the most suitable route.

Call: 01792 209987 Email: info@insulation-more.co.uk

What is Rockwool Pipe Insulation in PIB Cladding?

It is a mineral wool pipe insulation section with PIB weatherproof cladding already attached.

This product is designed for pipework where thermal insulation and external weather protection are both required. The Rockwool pipe section provides the insulation layer, while the PIB cladding helps protect the insulation from moisture, weather exposure and site conditions.

The integrated format reduces the need to separately cut and form PIB sheeting around every straight pipe section, making it a practical option for external pipe runs, plant areas, HVAC systems, process pipework and mechanical services.

Main Benefits

Insulation and Covering Together

Combines Rockwool mineral wool pipe insulation with an attached PIB cladding layer for a more complete straight-run solution.

Weatherproof Finish

The PIB outer layer helps protect insulated pipework from weather exposure, moisture and external conditions.

Peel-and-Stick Foil Closure

The foil lap is designed to close the insulation section around the pipe before the PIB cladding is sealed.

Solvent-Sealed PIB Joint

The PIB overlap is sealed using PIB solvent from the application kit to help create a weather-resistant finish.

Wide Size Range

Available in multiple insulation thicknesses and pipe outside diameters to suit common pipework sizes.

Industrial and Mechanical Use

Suitable for commercial, industrial, HVAC, process and power generation pipework applications.

How to Apply Rockwool Pipe Insulation in PIB Cladding

Fit the Rockwool section around the pipe, close the foil lap, then solvent-seal the PIB cladding overlap.

This is a basic installation guide only. Always follow the project specification, site requirements and competent installer guidance.

Check the Pipe Size

Select the correct pipe outside diameter and insulation thickness before fitting. Dry-fit first to confirm the section closes correctly.

Fit Around the Pipe

Open the Rockwool pipe section and position it around the pipe so the insulation sits neatly without gaps or compression.

Peel and Stick the Foil

Remove the backing from the foil lap and press the foil closure firmly along the length of the pipe section.

Seal the PIB Cladding

Apply PIB solvent to the PIB overlap and seal the outer cladding to create a weather-resistant finish.

For joints, end details, small gaps or finishing work between sections, use PIB Strips with the PIB Application Kit to help complete the weatherproof cladding detail.

Recommended Installation Products

For best results, use the pipe insulation with the correct PIB sealing products and finishing strips.

Typical Applications

Rockwool Pipe Insulation in PIB Cladding is commonly used where pipe insulation needs external protection from moisture and weather exposure.

  • External pipework and exposed services
  • Mechanical and industrial pipework
  • HVAC pipework and plant areas
  • Process piping and power generation facilities
  • Pipe runs where insulation needs an integrated weatherproof covering
  • Projects where straight pipe sections need to be insulated and protected quickly

Sizes and Options

This product is supplied in 1m lengths and is available in a wide range of insulation thicknesses and pipe outside diameters.

Specification Details
Product Type Rockwool mineral wool pipe insulation with attached PIB cladding
Length 1m section
Insulation Thickness Options 20mm, 25mm, 30mm, 40mm and 50mm
Pipe OD Options 17mm to 273mm, depending on selected insulation thickness
Insulation Material Rockwool / mineral wool pipe section
Outer Covering PIB weatherproof cladding
Closure Method Foil peel-and-stick closure plus solvent-sealed PIB overlap
Useful Accessories PIB Application Kit and PIB Strips

Ordering Note

Select both the insulation thickness and the pipe outside diameter before adding to basket.

If you are unsure whether to order by pipe bore or pipe outside diameter, contact us before ordering and we can help check your requirement against the product options.

Is This Product Right for Your Project?

This product is a strong option where you need Rockwool pipe insulation and a PIB weatherproof covering in one pre-clad section. It is especially useful for exposed pipework where the insulation needs protection from weather and moisture.

If you only need the insulation without PIB cladding, view our Mineral Wool Stone Pipe Insulation range. If you need separate cladding materials, view our PIB Cladding and Insulation Cladding collections.

Ask About PIB-Clad Rockwool Pipe Insulation

Related Pipe Insulation and Cladding Ranges

Mineral Wool PipeRockwool and stone wool pipe insulation options. PIB CladdingFlexible waterproof cladding and PIB covering products. All CladdingProtective finishes for pipe and duct insulation. Pipe InsulationBrowse all pipe lagging and pipe insulation routes. Frost ProtectionInsulation and trace heating for exposed pipework. Trace HeatingCables, controls and accessories for frost protection.

Send Us Your Pipework Requirement

If you are working from a drawing, schedule or site measurement, send us the pipe outside diameter, required insulation thickness, pipe service, exposure, quantity and any cladding requirement.

Our team can help check whether PIB-clad Rockwool pipe insulation, standard pipe insulation, PIB strips or separate cladding products are the best route.

Trade Support:
Product guidance for contractors, facilities teams and repeat buyers.
Weatherproofing Route:
Rockwool pipe insulation with attached PIB cladding for exposed services.
Accessories Available:
PIB solvent, application tools, strips and cladding support products.

Phone: 01792 209987
Email: info@insulation-more.co.uk
Contact Page: https://insulation-more.co.uk/pages/contact
