Hush Lag 5/25 is a high-performance acoustic laminate designed to provide effective sound attenuation across a wide range of building and mechanical service applications.
Size on the Roll 2 x 1.2 x 25mm

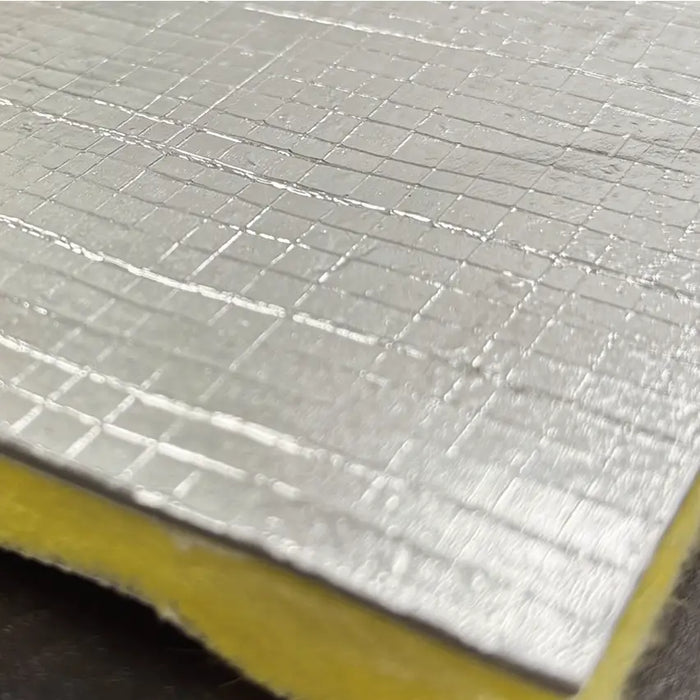

Manufactured as a stable tri-layer construction, it combines a controlled density mineral fibre layer, a flexible high-mass acoustic barrier and a reinforced foil facing. The integrated design delivers both mass and isolation within a single material, removing the need for a separate
decoupling layer.
The outer foil finish provides additional durability along with flame and vapour resistance.
The fire performance of the product is tested as B, s2, d0 (Test Ref: 27/06787B3/06/25).
This makes the material suitable for use in environments where this level of fire performance, acoustic performance and mechanical protection are required.
TECHNICAL DATA
| DESCRIPTION | DATA | UNIT | TOLORANCE | TEST METHOD |
| Apparent Density | 363 | Kg/m3 | +/- 10% | DIN EN 1602 |
| Reaction to Fire | B, s2, d0 (full composite product) | - | - | BS EN ISO 11925-2 BS EN 13823 |
| Nominal Weight | 5.54 | Kg/m2 | +/- 10% | - |
| Nominal Thickness | 15.25 (after compression when stitched) | mm | +/- 20% | - |
| Static Operating Temp Range | 20 – 93 (short exposure at extremes) | ◦C | - | Internal |
| Colour | Silver/yellow (front/back) | - | - | - |
